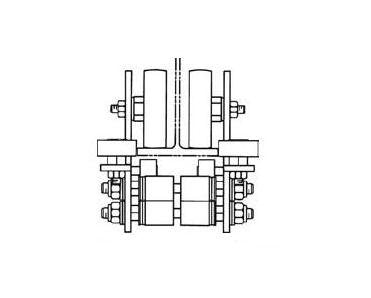

Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams

Name: Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
Brand: Clutch Engineering
SKU: CRA-ce19e7
Price: 299.99 USD
Availability: OutOfStock

SKU:CRA-ce19e7

Maximize crane efficiency with Series 450 Running Gear for W Beams. Hardened steel main rollers, easy side shield removal, 770 lb capacity, and more.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your crane control with the Series 450 Running Gear for W Beams. This running gear features hardened steel main rollers with precision ball bearings, zinc-plated horizontal guide rollers, and a design that allows for easy side shield removal. With a maximum load capacity of 770 lbs, operating temperature range from -22 to 220 ÂºF, and a speed of 500 fpm, this heavy-duty festoon system is a reliable choice for industrial applications. Designed to fit W5 x 19 in beams, it provides smooth and efficient operation even in demanding environments.

Product Specifications

Specifications Beam Size

W5 x 19 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

770 lb | 350 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers

Specifications Speed

500 fpm

Specifications Weight

31.3 lb | 14.2 kg

Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
