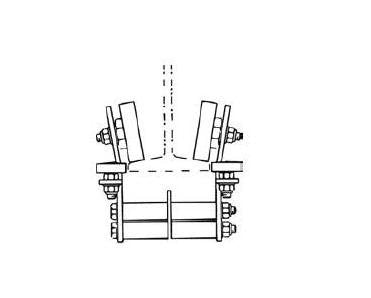

Heavy Duty I Beam Festoon System with Series 450 Running Gear

Name: Heavy Duty I Beam Festoon System with Series 450 Running Gear
Brand: Clutch Engineering
SKU: CRA-cd828b
Price: 299.99 USD
Availability: OutOfStock

SKU:CRA-cd828b

Enhance industrial operations with the Series 450 Running Gear for S Beams - durable, high-performance festoon system.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your industrial operations with the Series 450 Running Gear for S Beams. This heavy-duty system includes (4) side shields with hardened steel main rollers, zinc-plated anti-lift rollers, and stainless steel fasteners for durability. With an operating temperature range of -22 to 220 ÂºF and a maximum load capacity of 770 lb, this system is designed for reliable performance in tough environments. The independent side shield removal feature eases maintenance, while the polyurethane tires and horizontal guide rollers ensure smooth operation at speeds up to 500 fpm. Compliant with industry standards for crane control and electrification.

Product Specifications

Specifications Beam Size

S15 x 42.9 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

770 lb | 350 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers

Specifications Speed

500 fpm

Specifications Weight

31.3 lb | 14.2 kg
