Heavy Duty I Beam Festoon Systems Auxiliary Saddle
Heavy Duty I Beam Festoon Systems Auxiliary Saddle
SKU:CRA-a4c8fc
Enhance cable management and separation with this Heavy Duty I Beam Festoon Systems Auxiliary Saddle. Secure, reliable, and customizable for optimal performance.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon Systems Auxiliary Saddle
$159.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon Systems Auxiliary Saddle
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

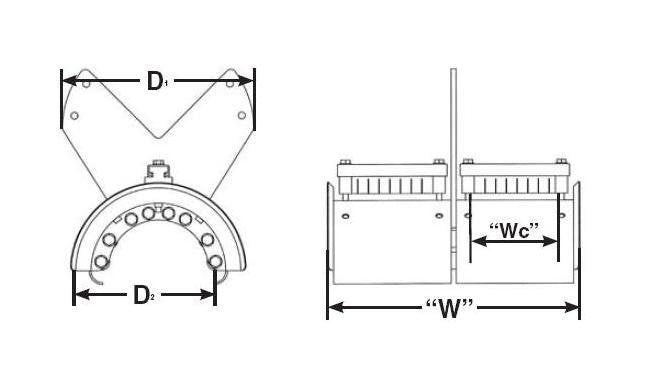

The Heavy Duty I Beam Festoon Systems Auxiliary Saddle is a crucial component for applications requiring additional support for large cable packages that cannot fit on the primary saddle or to segregate power and control cables. Depending on the trolley's weight capacity, one or two auxiliary support saddles can be added. These saddles are typically selected and ordered with the initial system purchase but can also be separately ordered for retrofitting. Certain configurations may necessitate bumper extensions for optimal functionality. With specifications including D1: 10 in, D2: 10 in, Wc: 12.63 in, W: 31.75 in, a single clamping bar design, and a weight of 33 lb, this auxiliary saddle ensures secure cable management in crane control setups.
Product Specifications
Specifications Clamping Bar
Single
Specifications D1
10 in | 260 mm
Specifications D2
10 in | 260 mm
Specifications W
31.75 in | 806 mm
Specifications Wc
12.63 in | 320 mm
Specifications Weight
33 lb | 15 kg
