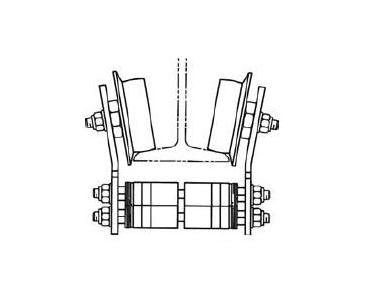

Heavy Duty I Beam Running Gear for S Beam - Series 450
Heavy Duty I Beam Running Gear for S Beam - Series 450
SKU:CRA-3e223d
Durable Series 450 Running Gear for S Beams with 450 lb max load, zinc-plated rollers, and easy maintenance design.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Heavy Duty I Beam Running Gear for S Beam - Series 450
$189.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Running Gear for S Beam - Series 450
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 450 Running Gear for S Beams is a robust solution designed for heavy-duty applications, featuring hardened steel main rollers with zinc plating and sealed ball bearings for smooth operation. With a maximum load capacity of 450 lb and a main roller diameter of 2.5 inches, this running gear ensures reliable performance in challenging environments. The independent side shield removal design enhances maintenance efficiency, while the galvanized steel construction offers durability. Ideal for Crane Control & Electrification systems requiring seamless cable festooning.
Product Specifications
Specifications Beam Size
S15 x 50.0 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
24.8 lb | 11.2 kg
