Heavy Duty I Beam Running Gear for W Beams

Name: Heavy Duty I Beam Running Gear for W Beams
Brand: Clutch Engineering
SKU: CRA-57923e
Price: 349.99 USD
Availability: OutOfStock

SKU:CRA-57923e

Upgrade your crane with Series 450 Running Gear for W Beams - durable, high-performance solution

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

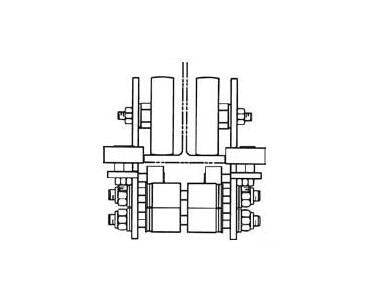

Enhance your crane system with the Series 450 Running Gear designed for W Beams. This running gear features steel main rollers with sealed ball bearings, zinc-plated horizontal guide, and anti-lift rollers. With a maximum load capacity of 450 lbs, operating temperatures from -22 to 220 °F, and a speed of 500 fpm, this heavy-duty running gear ensures smooth and reliable operation. Independently removable side shields make maintenance a breeze, while the galvanized steel construction ensures durability in demanding environments.

Product Specifications

Specifications Beam Size

W5 x 19 in

Specifications Main Roller Diameter

2.5 in | 62 mm

Specifications Maximum Load

450 lb | 204 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers

Specifications Speed

500 fpm

Specifications Weight

27.3 lb | 12.4 kg

Heavy Duty I Beam Running Gear for W Beams
