Heavy Duty I Beam Running Gear for W Beams
Heavy Duty I Beam Running Gear for W Beams
SKU:CRA-00b0bd
High-performance Series 450 Running Gear for W Beams - Durable, Easy Maintenance, Heavy-Duty
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Heavy Duty I Beam Running Gear for W Beams
$189.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Running Gear for W Beams
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

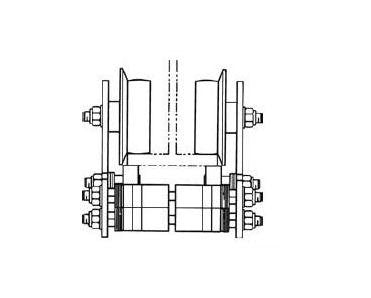

The Series 450 Running Gear for W Beams is expertly designed for heavy-duty applications, featuring (4) side shields with hardened steel main rollers and anti-lift rollers. With a maximum load capacity of 450 lb and a main roller diameter of 2.5 inches, this running gear ensures smooth operation at speeds up to 500 fpm. Crafted from galvanized steel and stainless steel fasteners, it offers durability and reliability in diverse environments, with an operating temperature ranging from -22 to 220 ºF. Designed for easy maintenance, this running gear allows independent side shield removal, making it a practical choice for crane control and cable festoon systems.
Product Specifications
Specifications Beam Size
W6 x 12 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
24 lb | 10.9 kg
