Heavy Duty I Beam Running Gear Series 450 for W Beams
Heavy Duty I Beam Running Gear Series 450 for W Beams
SKU:CRA-dd70fb
Enhance crane systems with the Series 450 Heavy Duty I Beam Running Gear for W Beams. Featuring hardened steel main rollers, zinc-plated guide rollers, and a maximum load of 315 lb.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty I Beam Running Gear Series 450 for W Beams
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Running Gear Series 450 for W Beams
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

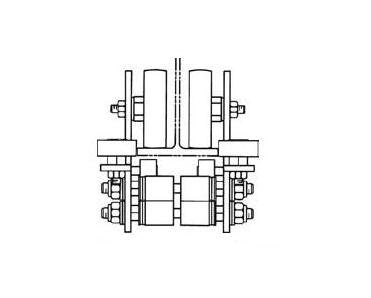

Upgrade your crane system with the Heavy Duty I Beam Running Gear Series 450 designed for W Beams. The running gear features hardened steel main rollers, zinc-plated horizontal guide rollers, and a maximum load capacity of 315 lb. With an operating temperature range of -22 to 220 ºF and a speed of 500 fpm, this running gear ensures smooth and efficient operation. Easy side shield removal adds to its practicality, making maintenance a breeze. Compliant with industry standards for durability and performance.
Product Specifications
Specifications Beam Size
W4 x 13 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
315 lb | 143 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
23.3 lb | 10.6 kg
