Heavy Duty I Beam Series 450 Running Gear
Heavy Duty I Beam Series 450 Running Gear
SKU:CRA-835977
Durable Heavy Duty I Beam Series 450 Running Gear for crane cable festoon systems, featuring robust construction and smooth operation.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy Duty I Beam Series 450 Running Gear
$349.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Series 450 Running Gear
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

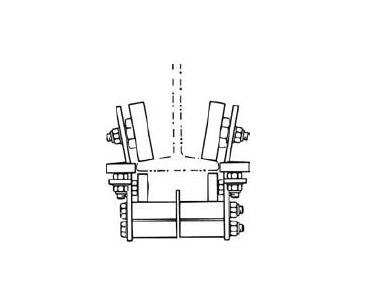

The Heavy Duty I Beam Series 450 Running Gear is a robust solution designed for efficient cable festoon systems on crane applications. It includes (4) side shields with durable hardened steel main rollers, zinc-plated anti-lift rollers, and precision ball bearings. With a maximum load capacity of 315 lb and a speed of 500 fpm, this running gear ensures smooth and reliable operation in a wide temperature range from -22 to 220 °F. The galvanized steel spacers and stainless steel fasteners provide durability and corrosion resistance, making it ideal for heavy-duty industrial settings. Additionally, the design allows for easy independent side shield removal, enhancing maintenance convenience.
Product Specifications
Specifications Beam Size
S10 x 25.4 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
315 lb | 143 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
24.4 lb | 11.1 kg
