Heavy Duty I Beam Series 450 Running Gear
Heavy Duty I Beam Series 450 Running Gear
SKU:CRA-444ba7
Durable Heavy Duty I Beam Series 450 Running Gear for W Beams, with steel main rollers, anti-lift rollers, and 1100 lbs max load.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy Duty I Beam Series 450 Running Gear
$499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Series 450 Running Gear
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

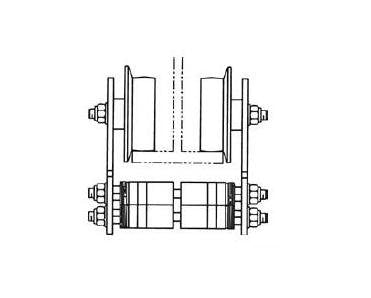

The Heavy Duty I Beam Series 450 Running Gear is a robust solution designed for W Beams, featuring (4) side shields with durable steel main rollers and anti-lift rollers. With a main roller diameter of 4 inches and a maximum load capacity of 1100 lbs, this running gear provides smooth operation at speeds up to 500 fpm. Crafted with galvanized steel spacers and stainless steel fasteners, it ensures long-lasting performance even in temperatures ranging from -22 to 220 °F. The independent side shield removal capability enhances maintenance efficiency, making it a reliable choice for crane control and electrification systems.
Product Specifications
Specifications Beam Size
W8 x 18 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
33.8 lb | 15.3 kg
