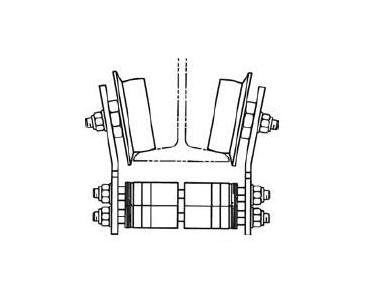

Heavy Duty I Beam Series 450 Running Gear for S Beams
Heavy Duty I Beam Series 450 Running Gear for S Beams
SKU:CRA-b5d385
Heavy Duty I Beam Series 450 Running Gear for S Beams - Durable, reliable solution for crane control, with steel main rollers and 450 lb maximum load
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Heavy Duty I Beam Series 450 Running Gear for S Beams
$289.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Series 450 Running Gear for S Beams
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty I Beam Series 450 Running Gear for S Beams is a robust and reliable solution designed for crane control and electrification needs in industrial settings. This running gear features steel main rollers with hardened steel construction and zinc plating, guaranteeing durability and smooth operation. With a maximum load capacity of 450 lb and a speed of 500 fpm, it ensures efficient and secure movement along the beam. The running gear's operating temperature range of -22 to 220 ºF makes it suitable for various environments, while the design allows for easy side shield removal, facilitating maintenance and installation efficiency.
Product Specifications
Specifications Beam Size
S8 x 23.0 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
24.8 lb | 11.2 kg
