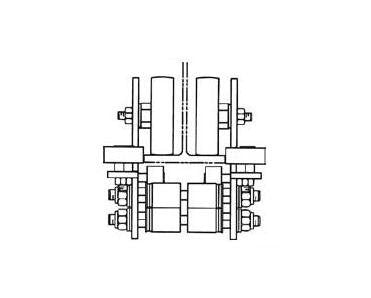

Heavy Duty I Beam Series 450 Running Gear for W Beams

Name: Heavy Duty I Beam Series 450 Running Gear for W Beams
Brand: Clutch Engineering
SKU: CRA-4cda11
Price: 349.99 USD
Availability: OutOfStock

SKU:CRA-4cda11

Enhance crane efficiency with durable Heavy Duty I Beam Series 450 Running Gear for W Beams. Supports up to 1100 lb with easy side shield removal. Ideal for industrial use.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance the efficiency of your crane system with the Heavy Duty I Beam Series 450 Running Gear for W Beams. This running gear includes four side shields with hardened steel main rollers, zinc-plated guide and anti-lift rollers, and galvanized steel spacers for durability. With a weight capacity of 1100 lb and a maximum speed of 500 fpm, this running gear is designed for optimal performance in industrial applications. The design allows for easy side shield removal, providing convenience for maintenance tasks. Operating at temperatures ranging from -22 to 220 ºF, this running gear is built to withstand various environmental conditions, making it a reliable choice for heavy-duty operations.

Product Specifications

Specifications Beam Size

W5 x 19 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

1100 lb | 500 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers

Specifications Speed

500 fpm

Specifications Weight

38.5 lb | 17.5 kg

Heavy Duty I Beam Series 450 Running Gear for W Beams
