Heavy-Duty In-Line Check Valves

Heavy-Duty In-Line Check Valves

ACC-dcefc5

Durable In-Line Check Valves for industrial flow control with ANSI/ASME certification.

$99.99
$99.99
Sale

Initiate Order

Heavy-Duty In-Line Check Valves

Heavy-Duty In-Line Check Valves

$99.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty In-Line Check Valves

Heavy-Duty In-Line Check Valves

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Our Heavy-Duty In-Line Check Valves are designed for reliable flow control in industrial settings. Featuring a metal-to-metal seal design, hardened steel poppet, and a rugged carbon steel housing, these valves ensure durability and precision. With a maximum operating pressure of 5000 psi, crack pressure of 65 psi, and flow rate of 150 gpm, these valves are suitable for demanding applications. Certified to meet ANSI/ASME standards, these valves guarantee quality and performance, making them an ideal choice for institutional and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

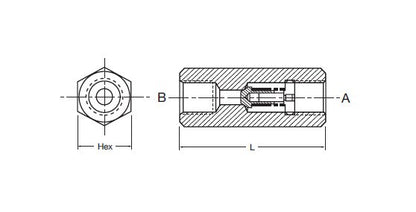

Dimensions Dimension L
5.63 in | 143 mm
Dimensions Hex Size
2 3/8 in | 60 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
4.5 bar | 65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1-1/4 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-25-01.X/5- 65
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
25
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 1/4 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
