Heavy-Duty Individual Guard Rail System
Heavy-Duty Individual Guard Rail System
SKU:SSP-7eff44
Max security with heavy-duty steel guard rails. Impact-tested for reliability. Easy installation & conversion for enhanced safety.
Regular price
$136.00
Regular price
Sale price
$136.00
Unit price
per
Initiate Order
Heavy-Duty Individual Guard Rail System
$136.00
Quantity: 1
Claim Your Seller Account
Heavy-Duty Individual Guard Rail System
$136.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Individual Guard Rail System offers unparalleled security against fork truck accidents, impact-tested to withstand a 10,000 lb. load at 4 mph. Crafted from formed, high-tensile steel rails that resist buckling, this system includes welded column nuts ensuring a secure connection to columns. It features Bolt-On and Lift-out systems in stock, with easy installation using pre-welded nuts, bolts, and floor anchors included. The unique lift-out design by Handle-It allows for convenient conversion to lift-out using Lift-Out Adapters, enhancing flexibility and safety. Ensure maximum protection with these industry-leading guard rails.

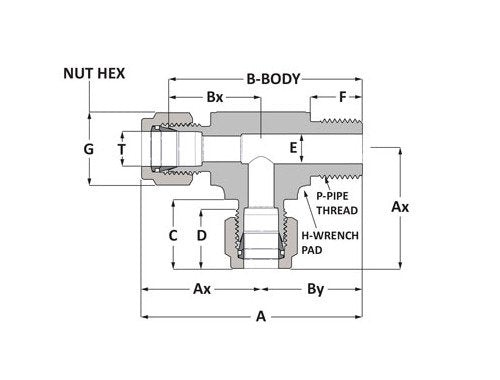

Product Specifications
Dimensions A
2.88 in
Dimensions Ax
1.50 in
Dimensions B
2.48 in
Dimensions Bx
1.10 in
Dimensions By
1.38 in
Dimensions C
0.86 in
Dimensions D
0.96 in
Dimensions E
0.47 in
Dimensions F
0.75 in
Dimensions G
1 in
Dimensions H
1 in
Dimensions P
1/2 in
Dimensions T
5/8 in

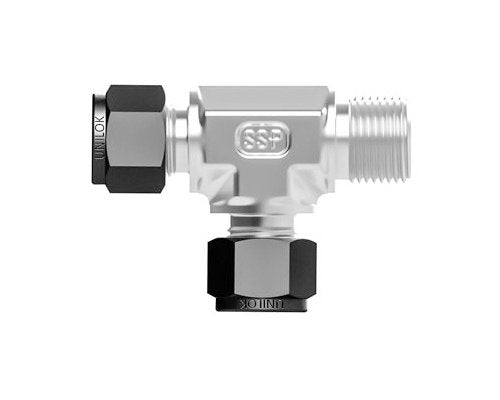

Specifications Body Material
316 SS
Specifications Brand Series
Unilok
Specifications Connection 1 Size
5/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Male BSPT
Specifications Connection 3 Size
5/8 in
Specifications Connection 3 Type
Tube Fitting
Specifications End Connections
TF x MNPT x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
78.32 USD
Specifications Production Category
1
Specifications Shape
Tee
Category 6
Unilok® Tube Fittings
