Heavy Duty Industrial Coolant Pump 4430-95

Heavy Duty Industrial Coolant Pump 4430-95

PRO-37d3eb

Efficient Heavy Duty Industrial Coolant Pump for reliable coolant and recirculating applications. Dual volute design reduces motor load.

$399.99
$399.99
Sale

Initiate Order

Heavy Duty Industrial Coolant Pump 4430-95

Heavy Duty Industrial Coolant Pump 4430-95

$399.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Industrial Coolant Pump 4430-95

Heavy Duty Industrial Coolant Pump 4430-95

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

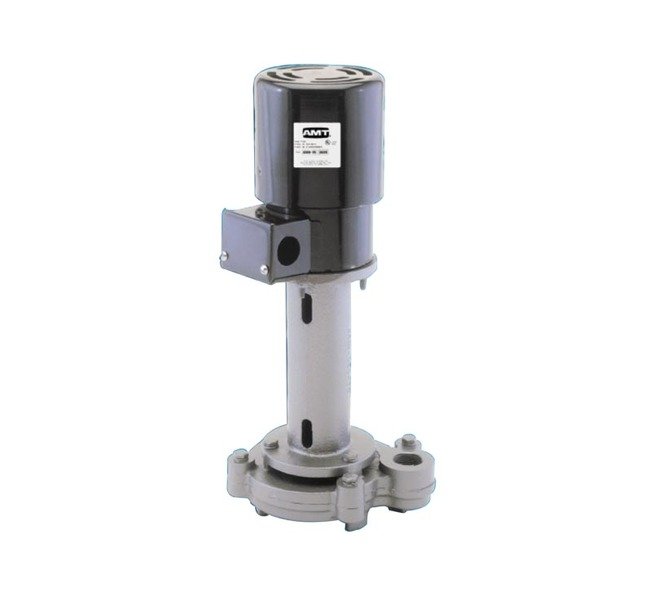

The 4430-95 Heavy Duty Industrial Coolant Pump from American Machine and Tool Company is designed for versatile Industrial/Commercial coolant and recirculating applications. Featuring a durable cast iron casing and column, along with self-cleaning, semi-open impeller, it offers reliable operation. With a maximum flow rate of 67 gpm, and the ability to handle viscosities up to 500 SSU, this pump ensures efficient performance. The dual volute design reduces radial load on the motor, maximizing its lifespan. This pump is highly customizable with single or three-phase 1/8 to 3/4 HP TEFC motors, making it suitable for various setups.

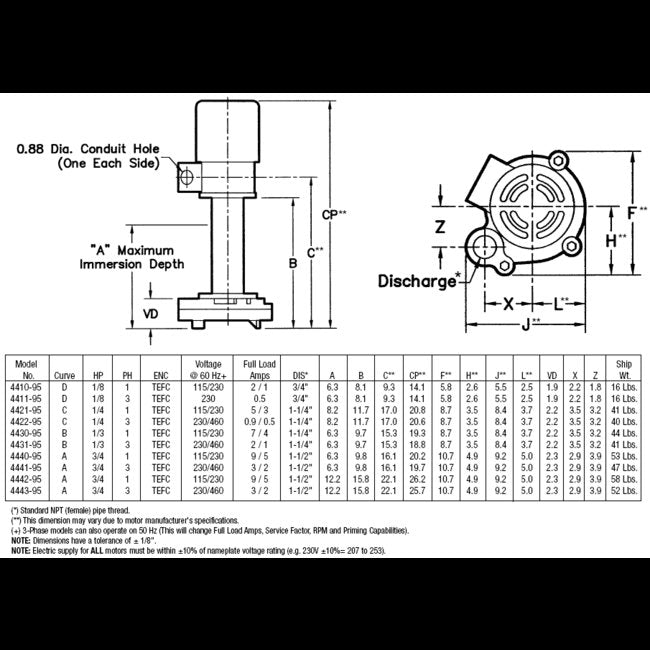

Product Specifications

Specifications 0
Cast Iron Casing and Column3/4" to 1-1/2" NPT Discharge PortHandles Viscosities to 500 SSUIncludes Universal Mounting BracketSelf-cleaning, Semi-open ImpellerSingle or Three Phase 56C Motor Available1/8 to 3/4 HP TEFC MotorMaximum Temperature 200ºF"Off-the-Shelf" Availability for Many Models
Specifications Curve
B
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
7/4 A
Specifications Height
19 in | 490.22 mm
Specifications Length
9 in | 220.98 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
67 gpm
Specifications Moc
Cast Iron
Specifications Model
4430-95
Specifications Motor Frame
56C
Specifications Phase
1
Specifications Porting Position
1 1/4 in
Specifications Power
1/3 hp
Specifications Shaft Seal Construction
Stainless Steel
Specifications Sku
AT443095SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
115/230 V
Specifications Weight
19.96 | 44 | 44 lbs
Specifications Width
8 in | 213.36 mm
