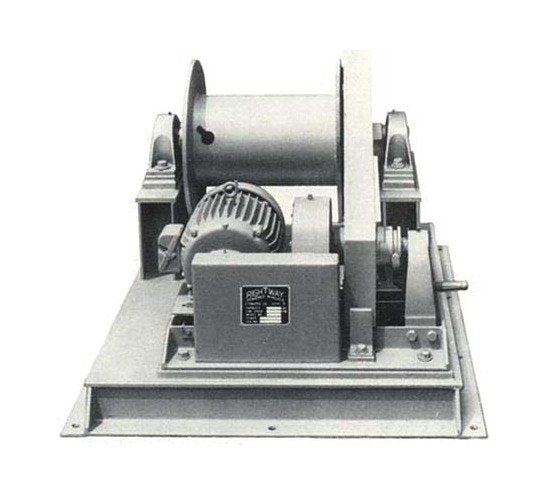

Heavy Duty Industrial Electric Winch - Model E5
Heavy Duty Industrial Electric Winch - Model E5
SKU:RIG-9db8fa
Powerful 40 HP winch with 20,000 lbs capacity, ideal for heavy-duty lifting and pulling applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Heavy Duty Industrial Electric Winch - Model E5
$7,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Industrial Electric Winch - Model E5
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E5 Heavy Duty Industrial Pullers are engineered for robust performance in demanding applications. Featuring a 40 HP motor, these winches offer a maximum full load capacity of 20,000 lbs. With a line speed of 35 FPM and a 7/8 inch wire rope size, these winches provide reliable lifting and pulling capabilities. The design includes a totally enclosed motor, triple reduction self-locking gearing, and heavy-duty roller bearings for exceptional durability. Additionally, optional equipment like overspeed automatic load holding drum brake and free spooling drum enhance operational safety and efficiency.
Product Specifications
Specifications Capacity Full Load Running
20000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
18 inches
Specifications Full Drum
950 ft.
Specifications Line Speed
35 FPM
Specifications Motor
40 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
7150 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
56 inches
Specifications Winch Length
86 inches
Specifications Winch Width
63 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
425 ft.
Specifications Wire Rope Size
7/8 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
