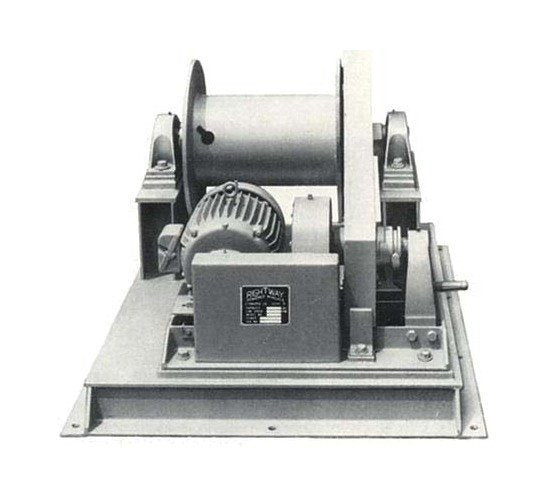

Heavy Duty Industrial Pullers Model E5
Heavy Duty Industrial Pullers Model E5
SKU:RIG-7765b8
Powerful Heavy Duty Industrial Pullers for demanding applications. Capacity: 7500 lbs, Line Speed: 25 FPM, Motor: 10 HP.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heavy Duty Industrial Pullers Model E5
$5,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Industrial Pullers Model E5
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Industrial Pullers Model E5 is a powerhouse designed for demanding industrial applications. With a capacity of 7500 lbs and a line speed of 25 FPM, this electric winch is equipped with a 10 HP motor for reliable performance. Its robust construction includes a triple reduction self-locking gearing system, heavy-duty roller bearings, and large diameter drums that enhance wire rope life. Perfect for lifting and pulling tasks, this puller winch features a steel-fabricated base and drum with a 5 to 1 structural safety factor, ensuring durability and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
7500
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
12 inches
Specifications Full Drum
850 ft.
Specifications Line Speed
25 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
2650 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
41 inches
Specifications Winch Length
66 inches
Specifications Winch Width
52 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
