Heavy Duty Industrial Winch - Model E5
Heavy Duty Industrial Winch - Model E5
SKU:RIG-09dea2
Powerful and durable heavy-duty winch with 15000 lb capacity, ideal for rugged industrial use.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Heavy Duty Industrial Winch - Model E5
$8,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Industrial Winch - Model E5
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

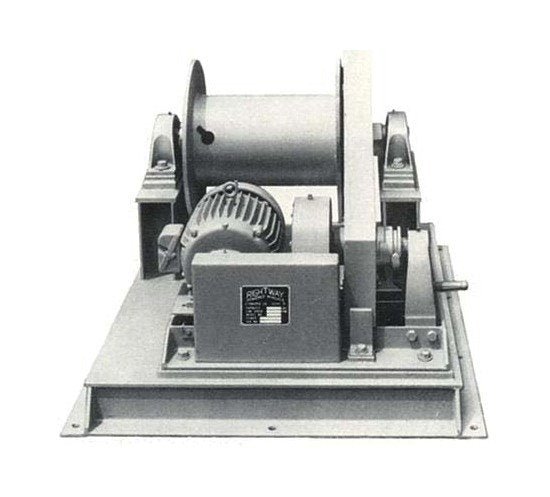

The Model E5 Heavy Duty Industrial Pullers are engineered for maximum performance in demanding environments. Featuring a 20 HP motor with high torque capabilities, this winch boasts a 15000 lb capacity and a line speed of 25 FPM. The design includes a large diameter drum for extended wire rope life and self-locking gearing for added safety. With all-weather usability and a steel fabricated base, this winch meets stringent durability and safety standards. Optional features like overspeed automatic load holding drum brake and torque limiter mechanical clutch further enhance its functionality.
Product Specifications
Specifications Capacity Full Load Running
15000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
16 inches
Specifications Full Drum
950 ft.
Specifications Line Speed
25 FPM
Specifications Motor
20 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
4825 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
49 inches
Specifications Winch Length
80 inches
Specifications Winch Width
55 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
450 ft.
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
