Heavy-Duty Inline Check Valves

Heavy-Duty Inline Check Valves

ACC-fd4d77

Heavy-Duty Inline Check Valves for reliable flow control in industrial applications. Durable carbon steel construction with metal-to-metal seal design.

$39.99
$39.99
Sale

Initiate Order

Heavy-Duty Inline Check Valves

Heavy-Duty Inline Check Valves

$39.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Inline Check Valves

Heavy-Duty Inline Check Valves

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience superior flow control with our Heavy-Duty Inline Check Valves, model RV-06-01.X/5. Crafted from durable carbon steel, these valves feature NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread port configuration. With a cracking pressure of 0.5 bar and a maximum operating pressure of 5000 psi, these valves ensure reliable performance in industrial settings. Their metal-to-metal seal design and hardened steel poppet guarantee long-term durability, making them ideal for various applications. Not recommended for high-cycle usage. Meet ANSI/ASME standards for quality assurance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

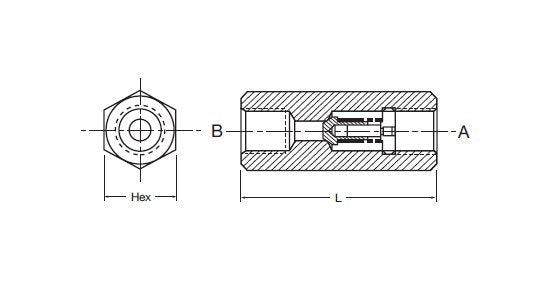

Dimensions Dimension L
1.77 in | 45 mm
Dimensions Hex Size
11/16 in | 17 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
0.5 bar | 7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1/8 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-06-01.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
06
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1/8 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
