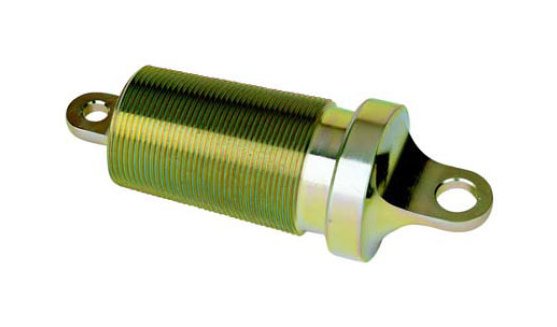

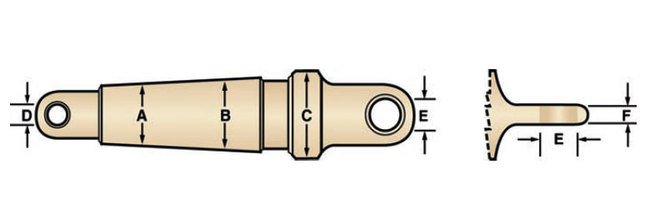

Experience unmatched pulling strength with our Heavy-Duty Innerduct Pulling Eyes. Designed with tapered buttress threads for secure attachment to innerducts, these eyes ensure maximum pulling tension resistance. Connect easily to Condux swivels for smooth operation. The precise sizing guarantees a secure fit, preventing dislodgement even under extreme pulling tensions. Determine the right size by matching innerduct I.D. to specified dimensions A and B.
Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.18 to 1.34
Specifications Innerduct Id Range A To B Mm
30 to 34
Specifications Max Od C In
1.50
Specifications Max Od C Mm
38
Specifications Nominal Size In
1-1/4
Specifications Nominal Size Mm
32
