Heavy Duty Jib Crane Model 800 TRM - Column Mast Supported
Heavy Duty Jib Crane Model 800 TRM - Column Mast Supported
SKU:REL-647c3b
Heavy Duty Jib Crane Model 800 TRM - Reliable, efficient, and adaptable. Tension bracing, smooth 360° rotation, and versatile mounting options. Easy to install and customize.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Heavy Duty Jib Crane Model 800 TRM - Column Mast Supported
$5,699.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Jib Crane Model 800 TRM - Column Mast Supported
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

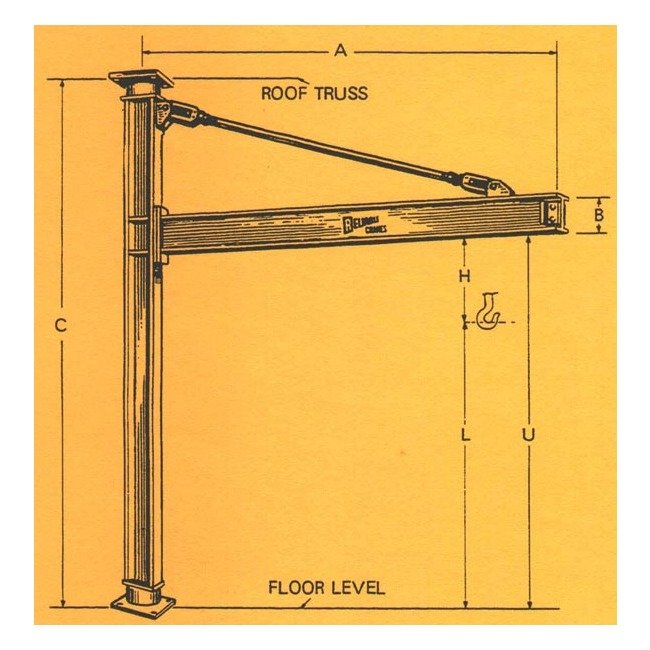

The Jib Crane Model 800 TRM is a heavy-duty solution designed for reliable performance. Featuring tension bracing for full trolley travel, self-aligning anti-friction bearings enabling smooth 360° rotation, and a heavy section structural mast for reduced floor loads. This crane's top bearing connection offers versatile mounting options, making it adaptable to various spaces. With ease of shipping and field installation in mind, this crane can be customized to suit specific height requirements. For precise installation dimensions, certified drawing No. SD-800-7T is available. The inclusion of a 1/2" allowance in the 'C' dimension allows for convenient field adjustments. A robust crane built for efficiency and durability.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Size B
7 inches
Specifications Capacity
4000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
16'-0"
Specifications Model
BPM | CBM | CDC | CIM | TDC | TRM | TRW
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
10'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
980 lbs.
