Heavy-Duty Large Bipolar Electromagnet
Heavy-Duty Large Bipolar Electromagnet
SKU:LAR-c85895
Powerful Large Bipolar Electromagnet for efficient handling of steel bundles and irregular workpieces. Custom pole shoes available.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Heavy-Duty Large Bipolar Electromagnet
$1,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Large Bipolar Electromagnet
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Large Bipolar Electromagnet features an extended, parallel pole design for an increased magnetic field reach. With both north and south poles making contact, it efficiently handles steel bundles, die blocks, castings, and more. Custom replaceable pole shoes cater to unique handling needs. This electromagnet offers a Capacity of 2800 lb, Power of 135 W, and complies with stringent industry standards for reliable performance in institutional settings.
Product Specifications
Manufacturing Notes 0
Capacity ratings shown include a 2:1 safety factor.
Specifications Capacity
2800 lb

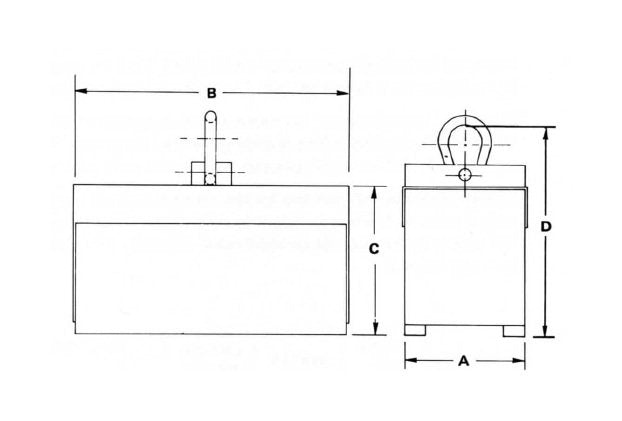

Specifications Dimension A
6 1/2 in
Specifications Dimension B
8 1/2 in
Specifications Dimension C
9 3/4 in
Specifications Dimension D
17 1/4 in
Specifications Power
135 W
Specifications Weight
135 lb
