Heavy-Duty Lateral Bracket for Conductor Bar Systems

Name: Heavy-Duty Lateral Bracket for Conductor Bar Systems
Brand: Clutch Engineering
SKU: CRA-6cc03d
Price: 64.99 USD
Availability: OutOfStock

SKU:CRA-6cc03d

Durable Heavy-Duty Lateral Bracket for mounting conductor bars securely. Available in multiple amperage ratings. Crafted from plated steel with stainless steel hangers.

$64.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

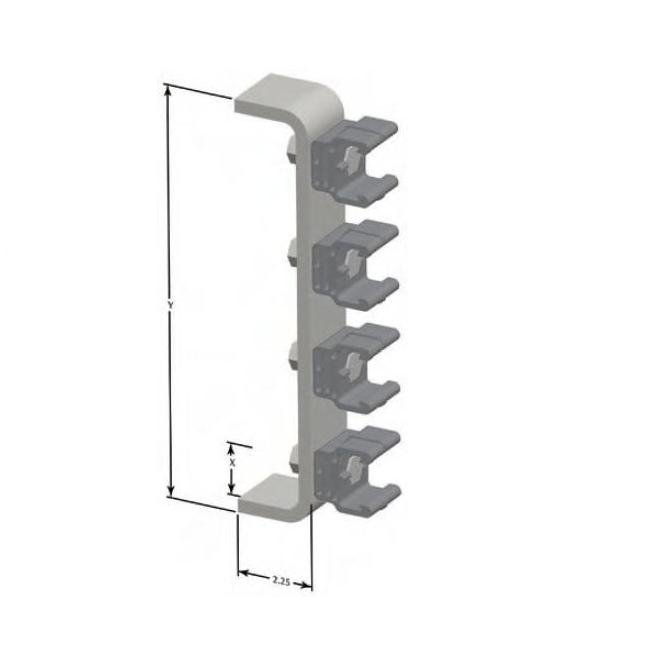

The Heavy-Duty Lateral Bracket is a crucial component in conductor bar systems, designed to securely mount to the vertical web of beams to configure conductor bars one above the other. Crafted from plated steel, this bracket is built to last and can support varying amperage ratings of 700 A, 1000 A, and 1500 A. With a width of 2 1/2 inches and a thickness of 3/8 inches, this bracket comes equipped with four pre-installed hangers featuring stainless steel cross-bolts with insulators. Weighing 3.2 lbs, the bracket dimensions measure X: 1 1/2 inches and Y: 12 inches, ensuring stability and reliability in demanding industrial settings.

Product Specifications

Specifications Amperage Rating

700 A | 1000 A | 1500 A

Specifications Material

Plated Steel

Specifications Type

Bracket with four pre-installed hangers - stainless steel cross-bolt with insulators

Specifications Weight

3.2 lb

Specifications X

1 1/2 in

Specifications Y

12 in
