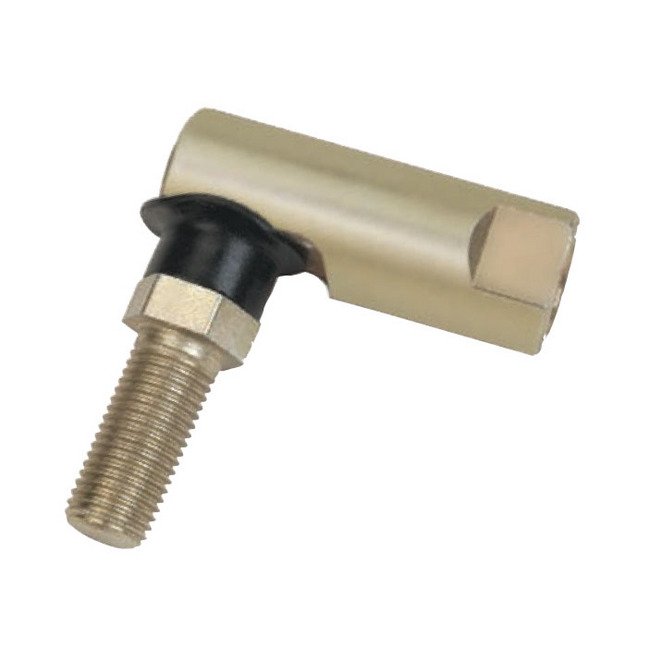

Heavy-Duty Left Hand Rod End Ball Joint

Name: Heavy-Duty Left Hand Rod End Ball Joint
Brand: Lexco Cable Manufacturing
SKU: PUS-2821f0
Price: 35.99 USD
Availability: OutOfStock

SKU:PUS-2821f0

Durable Left Hand Rod End Ball Joint for medium to heavy-duty applications. Steel body with staked design, rubber grommet seal, and versatile temperature range.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Left Hand Rod End Ball Joint from the R-G Ball Joints line offers a robust solution for medium to heavy-duty applications. Featuring a steel body and ball stud 'staked' design, this ball joint ensures durability and extended wear life. The case-hardened ball stud and rubber grommet seal provide protection against contaminants, while its wide temperature range compatibility (-30 Ã‚ÂºF to 250 Ã‚ÂºF) makes it versatile for various industrial applications. Customizable sizes and assemblies are available to meet specific requirements, including male to male or female to female setups with right or left-handed threads. Compliant with SAE specification J490 (Type G/Style 2), this ball joint is a reliable choice for demanding environments.

Product Specifications

Applications 0

Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment

Features 0

Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ÂºF - 250 ÂºF (-34 ÂºC - 121 ÂºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)

Material 0

Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

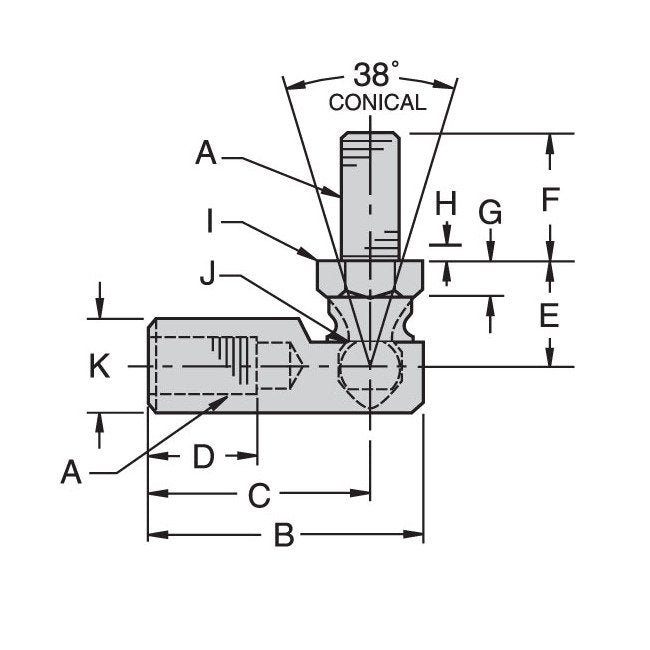

Specifications A Unf

1/2-20 "

Specifications B 0020

2.375 "

Specifications C 0020

1.937 "

Specifications D Min

1.125 "

Specifications E 0020

0.875 "

Specifications Force To Remove Ball Stud

2700 lb

Specifications F 0020

1.125 "

Specifications G Ref

0.250 "

Specifications H Ref

0.125 "

Specifications I Ref

0.625 "

Specifications J Ref

0.412 "

Specifications K Ref

0.750 "

Specifications Note

Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.

Specifications Temperature Range

-30 to 250 ÂºF | -34 to 121 ÂºC

Specifications Tensile Shear Strength

3390 lb

Specifications Wrench Flat Length

0.375 "

Specifications Wrench Flat Width

0.625 "

CAGE

0T9L4

NAICS

332510

PSC

4030
