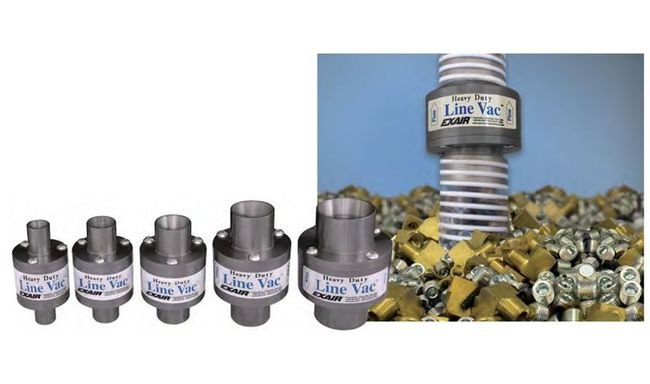

Heavy Duty Line Vac Conveyor, 0.75 in Inlet, Hardened Alloy Construction
Heavy Duty Line Vac Conveyor, 0.75 in Inlet, Hardened Alloy Construction
SKU:HEA-5169aa
Powerful Heavy Duty Line Vac Conveyor for efficient material conveying. Hardened alloy construction, high vacuum pressure. Perfect for various applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty Line Vac Conveyor, 0.75 in Inlet, Hardened Alloy Construction
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Line Vac Conveyor, 0.75 in Inlet, Hardened Alloy Construction
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled material conveying capabilities with the Heavy Duty Line Vac Conveyor. Engineered with heavy-duty hardened alloy material, it delivers exceptional performance over extended vertical and horizontal distances. With a vacuum pressure of -144 inWc, 80 psig pressure rating, and corrosion-resistant construction, this conveyor ensures reliable and efficient operation, making it ideal for chip removal, part transfer, and waste removal applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
26 SCFM | 736 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Good
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F
1 in | 25 mm
Specifications Dimension H
1 in | 25 mm
Specifications Dimension I
0.76 in | 19 mm
Specifications Dimension J
1.52 in | 39 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.38 in | 35 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.44 in | 37 mm
Specifications Dimension O
0.20 in | 5 mm
Specifications Hose Size
0.75 in | 19 mm
Specifications Inlet Size
3/4 in | 19 mm
Specifications Inside Diameter
0.50 in | 13 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Diameter
3/4 in | 19 mm
Specifications Outside Diameter
1.88 in | 48 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Vacuum Pressure
-144 inWc | -36 kPa
