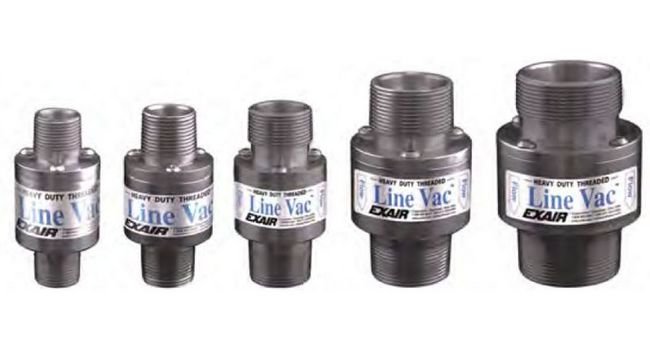

Heavy Duty Line Vac Conveyor - 1-1/2 NPT Inlet Thread Size
Heavy Duty Line Vac Conveyor - 1-1/2 NPT Inlet Thread Size
SKU:HEA-418e02
Upgrade material handling efficiency with the Heavy Duty Line Vac Conveyor - ideal for various applications, available from stock.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty Line Vac Conveyor - 1-1/2 NPT Inlet Thread Size
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Line Vac Conveyor - 1-1/2 NPT Inlet Thread Size
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance material handling efficiency with the Heavy Duty Line Vac Conveyor. Crafted from Heavy-Duty Hardened Alloy, this conveyor offers a Pressure of 80 psig, ensuring durability. With an Inlet Thread Size of 1-1/2 NPT, it delivers a Vacuum Pressure of -60 inWc for optimal performance. Its compact design and noise-free operation make it ideal for various applications, including Chip Removal, Hopper Loading, and Waste/Trim Removal. Meet your conveying needs with this reliable, stock-available conveyor that complies with industry standards.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
55 SCFM | 1557 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
0.86 in | 22 mm
Specifications Dimension J
1.73 in | 44 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.44 in | 37 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.88 in | 48 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
1-1/2 NPT
Specifications Inside Diameter
1.25 in | 32 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Thread Size
1-1/2 NPT
Specifications Outside Diameter
2.75 in | 70 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pipe Size
1-1/2 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-60 inWc | -15 kPa
