Heavy Duty Line Vac Conveyor, 1.25 in Inlet
Heavy Duty Line Vac Conveyor, 1.25 in Inlet
SKU:HEA-011da1
Powerful Heavy Duty Line Vac Conveyor for efficient material conveyance over long distances, with 80 psig pressure. Ideal for industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Heavy Duty Line Vac Conveyor, 1.25 in Inlet
$399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Line Vac Conveyor, 1.25 in Inlet
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

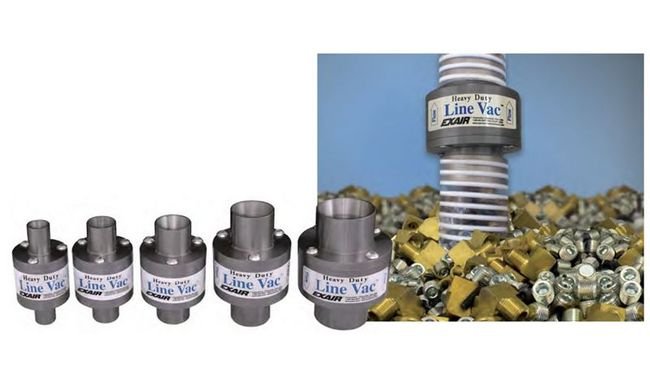

The Heavy Duty Line Vac Conveyor is a durable and powerful solution designed to efficiently convey materials over longer distances with enhanced performance. Constructed with heavy-duty hardened alloy, it ensures longevity and prevents premature wear. With a maximum pressure of 80 psig, vacuum pressure of -83 inWc, and high air consumption of 49 SCFM, this conveyor is ideal for various applications including chip removal, material conveying, and waste removal. Its compact design, quiet operation, and no moving parts make it a reliable choice for demanding industrial environments.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
49 SCFM | 1388 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Good
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F
1 in | 25 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
1 in | 25 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
0.31 in | 8 mm
Specifications Dimension L
1.61 in | 41 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.68 in | 43 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
1.25 in | 32 mm
Specifications Inlet Size
1-1/4 in | 32 mm
Specifications Inside Diameter
1 in | 25 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Diameter
1-1/4 in | 32 mm
Specifications Outside Diameter
2.38 in | 61 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Vacuum Pressure
-83 inWc | -21 kPa
