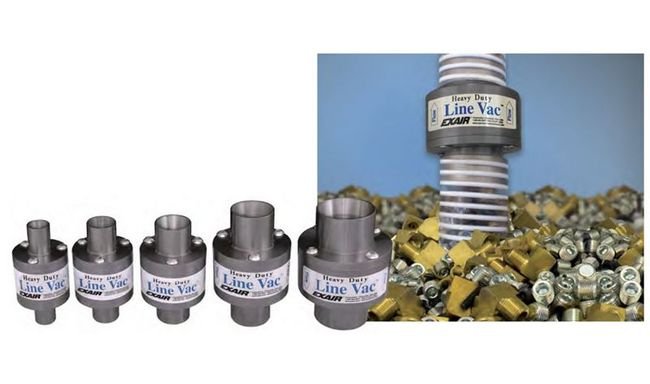

Heavy Duty Line Vac Conveyor - 1.50" Inlet Diameter
Heavy Duty Line Vac Conveyor - 1.50" Inlet Diameter
SKU:HEA-3b97c7
Powerful Heavy-Duty Line Vac Conveyor for efficient material conveying in industrial settings.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
Heavy Duty Line Vac Conveyor - 1.50" Inlet Diameter
$359.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Line Vac Conveyor - 1.50" Inlet Diameter
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your material conveying with the Heavy Duty Line Vac Conveyor featuring a robust Heavy-Duty Hardened Alloy construction, capable of conveying materials over long distances. With superior durability, high throughput capability, and compatibility with various applications, this conveyor is ideal for industrial environments seeking efficient and reliable material handling solutions.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
55 SCFM | 1557 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Good
Specifications Dimension E
2.13 in | 54 mm
Specifications Dimension F
1.25 in | 32 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
0.86 in | 22 mm
Specifications Dimension J
1.73 in | 44 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.44 in | 37 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.88 in | 48 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
1.50 in | 38 mm
Specifications Inlet Size
1-1/2 in | 38 mm
Specifications Inside Diameter
1.25 in | 32 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Diameter
1-1/2 in | 38 mm
Specifications Outside Diameter
2.75 in | 70 mm
Specifications Overall Length
4.38 in | 111 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Vacuum Pressure
-60 inWc | -15 kPa
