Heavy-Duty Liquid Tight Flexible Metal Conduit (LFMC) - Type UA HD

Name: Heavy-Duty Liquid Tight Flexible Metal Conduit (LFMC) - Type UA HD
Brand: Anamet Electrical, Inc.
SKU: LIQ-bfde2f
Price: 899.99 USD
Availability: OutOfStock

SKU:LIQ-bfde2f

Premium UL Listed Liquid Tight Flexible Metal Conduit (LFMC) for demanding environments, with superior crush and corrosion resistance. Suitable for diverse applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

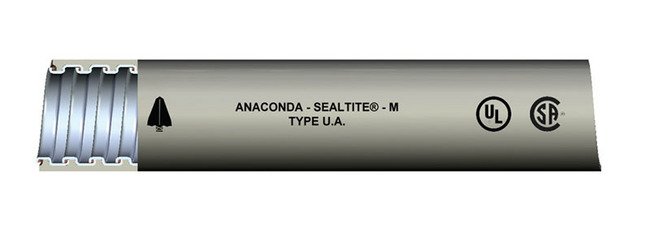

The Type UA HD is a premium, UL Listed Liquid Tight Flexible Metal Conduit (LFMC) designed for robust performance in demanding environments. Constructed with a hot-dipped zinc galvanized steel core for superior crush and corrosion resistance, it features a durable UV-resistant PVC jacket that withstands extreme temperatures from -40°F to +176°F. This conduit is suitable for direct burial and concrete application and comes in various trade sizes from 3/8 to 4 inches. Compliant with NEC Articles and certified to meet industry standards, including UL 360, CSA, RoHS, and NFPA 79 Section 13.5.4, it is ideal for IT equipment, hazardous locations, and more.

Product Specifications

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

25 lbs | 11.34 kg

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Inside Diameter

0.484 to 0.504 in | 12.294 to 12.802 mm

Specifications Length

800 ft | 243.84 m

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Small Reels

Heavy-Duty Liquid Tight Flexible Metal Conduit (LFMC) - Type UA HD
