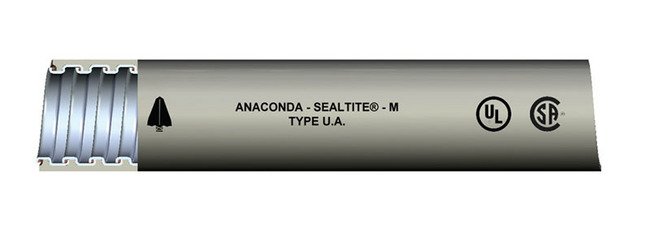

Heavy-Duty Liquid Tight Flexible Metal Conduit - Type UA HD
Heavy-Duty Liquid Tight Flexible Metal Conduit - Type UA HD
SKU:LIQ-ee7c81
Heavy-Duty Liquid Tight Flexible Metal Conduit - Crush and Corrosion Resistant, UL Listed, CSA Certified, RoHS WEEE COMPLIANT
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Liquid Tight Flexible Metal Conduit - Type UA HD
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Liquid Tight Flexible Metal Conduit - Type UA HD
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

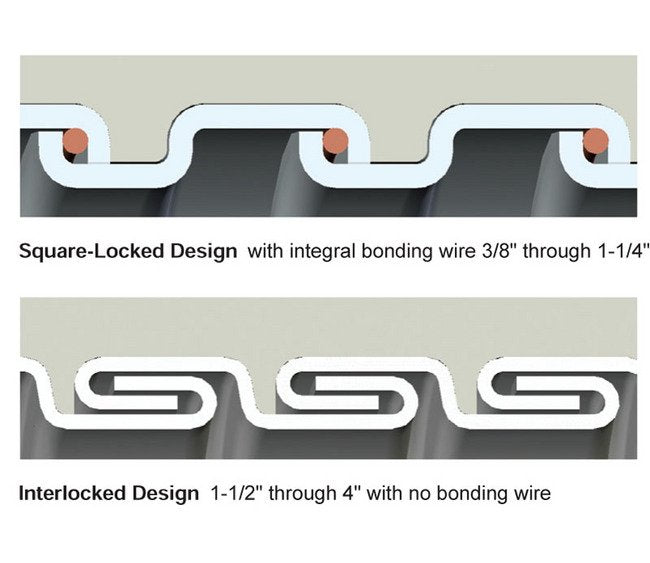

The Heavy-Duty Liquid Tight Flexible Metal Conduit (LFMC), Type UA HD, is crafted with a continuously interlocked hot-dipped zinc galvanized steel core, providing exceptional crush and corrosion resistance. Its durable UV-resistant PVC jacket withstands heat, oil, and chemicals, ensuring longevity in harsh environments. This conduit is UV, corrosion, and oil resistant, suitable for direct burial and concrete installation. With trade sizes ranging from 3/8 to 4 inches, it complies with various NEC Articles, making it ideal for Hazardous Locations per NEC standards. The UL Listed Type UA HD conduit is CSA Certified and RoHS WEEE COMPLIANT, underscoring its adherence to industry regulations and requirements.
Product Specifications
Specifications Approx Inside Bend Radius
5.0 in | 127 mm
Specifications Approx Weight Per 100 Ft
43 lbs | 19.5 kg
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Inside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Length
50 ft | 15.62 m
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Small Cartons
