Heavy-Duty Load Pin Bobbin
Heavy-Duty Load Pin Bobbin
SKU:LOA-76cfb4
Precision-engineered Load Pin Bobbin for heavy machinery applications, ensuring reliable performance under extreme conditions.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Heavy-Duty Load Pin Bobbin
$99.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Load Pin Bobbin
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

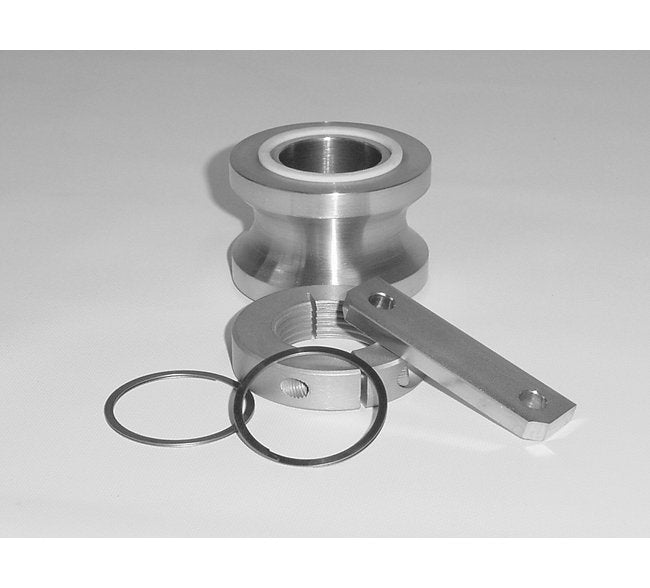

The Heavy-Duty Load Pin Bobbin is a robust solution designed for precision load measurement in heavy machinery applications. With a D-shackle size of 1-1/8 inch and a load capacity of 22000 lb, this bobbin ensures reliable performance under extreme conditions. Its durable construction, featuring dimensions A to K, provides accurate load sensing and secure installation. Ideal for industrial usage requiring high load capacity and precise measurements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Diameter
1.250 in
Specifications B Diameter
1.375 in
Specifications C Diameter
1.625 in

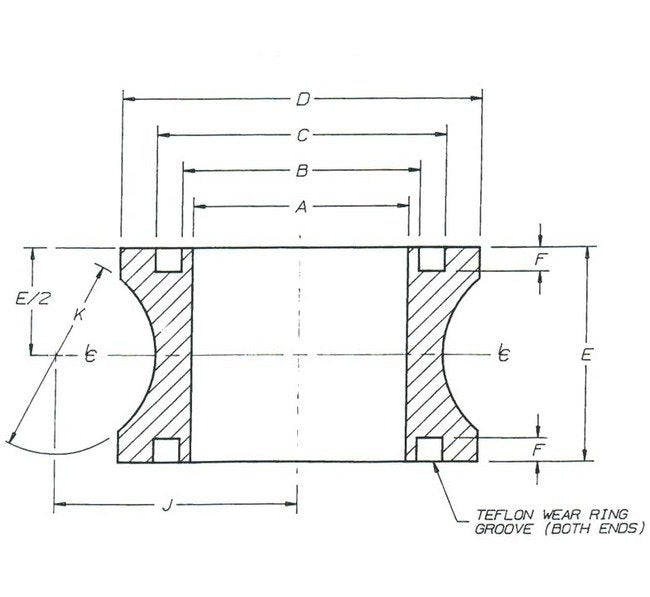

Specifications Dimensional Drawing
Clevis Pin Bobbins
Specifications D Diameter
2.313 in
Specifications D Shackle Size
1-1/8 Inch
Specifications E Height
1.813 in
Specifications F Slot Depth
0.125 in
Specifications J Length
1.375 in
Specifications K Diameter
1.000 in
Specifications Load Capacity
22000 lb
