Heavy-Duty Load Pin Bobbin
Heavy-Duty Load Pin Bobbin
SKU:LOA-5b3249
Explore our Heavy-Duty Load Pin Bobbin for superior strength and precision in heavy-load applications. With a capacity of 180,000 lb, this accessory ensures reliability in extreme conditions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Load Pin Bobbin
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Load Pin Bobbin
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

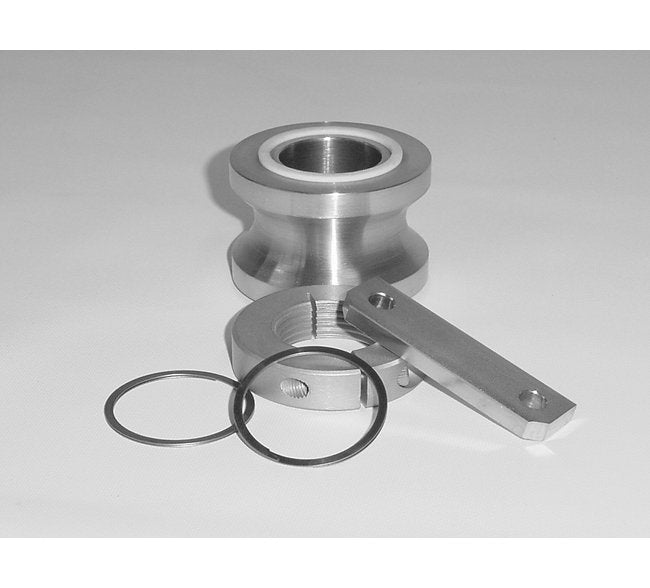

The Heavy-Duty Load Pin Bobbin is a robust and reliable accessory designed to withstand extreme loads with a capacity of 180,000 lb. Crafted with precision, this bobbin features a durable construction with dimensions conforming to industry standards. The clevis pin design ensures secure fastening, while the slot depth and heights are optimized for efficient load distribution. Ideal for heavy-duty applications, this load pin bobbin guarantees accuracy and safety in demanding environments.
Product Specifications
Specifications A Diameter
3.750 in
Specifications B Diameter
4.125 in
Specifications C Diameter
4.625 in

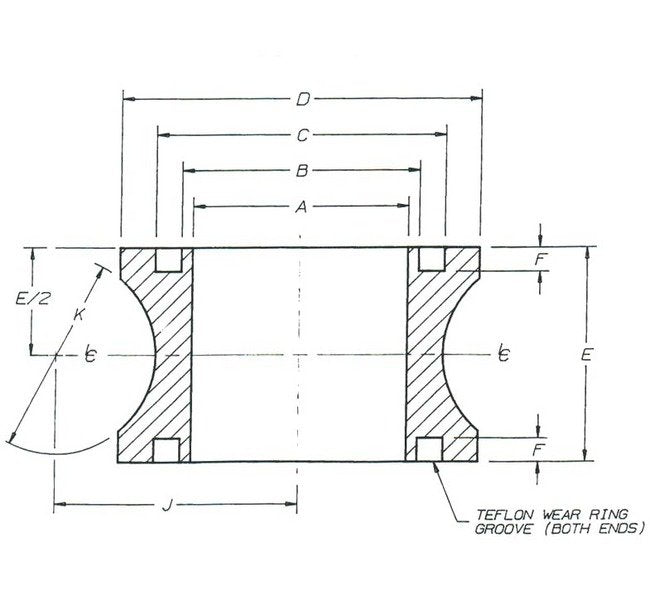

Specifications Dimensional Drawing
Clevis Pin Bobbins
Specifications D Diameter
6.000 in
Specifications D Shackle Size
3-1/2 Inch
Specifications E Height
5.750 in
Specifications F Slot Depth
0.250 in
Specifications J Length
4.125 in
Specifications K Diameter
3.250 in
Specifications Load Capacity
180000 lb
