Heavy-Duty Load Pin Bobbin
Heavy-Duty Load Pin Bobbin
SKU:LOA-6ac26a

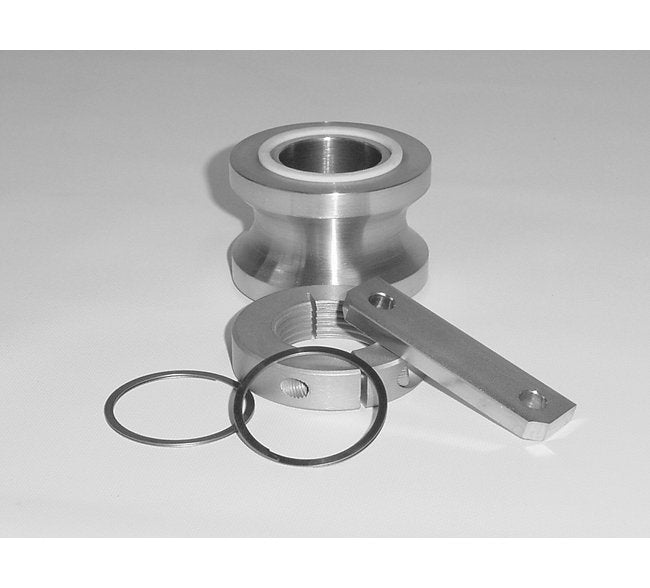

Heavy-Duty Load Pin Bobbin for precise and reliable load measurements in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Load Pin Bobbin
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Load Pin Bobbin
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Load Pin Bobbin is designed for industrial applications requiring precise load measurements. With a D-Shackle size of 2-1/2 inches and a massive load capacity of 100,000 lbs, this bobbin ensures accurate and reliable data collection. Featuring a sturdy construction with dimensions of A - 2.750 in, B - 3.000 in, C - 3.375 in, D - 4.875 in, E - 4.125 in, F - 0.188 in, J - 3.188 in, and K - 2.375 in, it is built to withstand heavy-duty use. This load pin accessory is essential for applications where precision and durability are paramount, making it a reliable choice for a wide range of industries.
Product Specifications
Specifications A Diameter
2.750 in
Specifications B Diameter
3.000 in
Specifications C Diameter
3.375 in

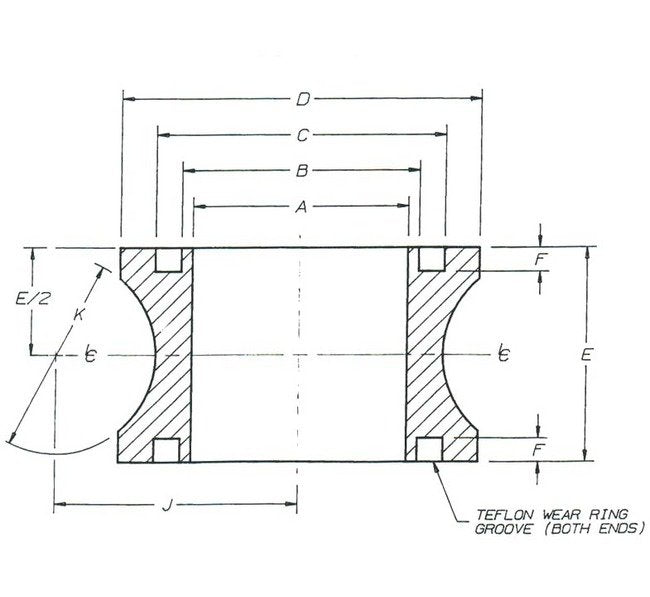

Specifications Dimensional Drawing
Clevis Pin Bobbins
Specifications D Diameter
4.875 in
Specifications D Shackle Size
2-1/2 Inch
Specifications E Height
4.125 in
Specifications F Slot Depth
0.188 in
Specifications J Length
3.188 in
Specifications K Diameter
2.375 in
Specifications Load Capacity
100000 lb
