Heavy-Duty Load Pin Bobbin
Heavy-Duty Load Pin Bobbin
SKU:LOA-133263
Heavy-Duty Load Pin Bobbin - Ideal for heavy-duty applications, 50000 lb load capacity, precise dimensions, and durable construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy-Duty Load Pin Bobbin
$49.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Load Pin Bobbin
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

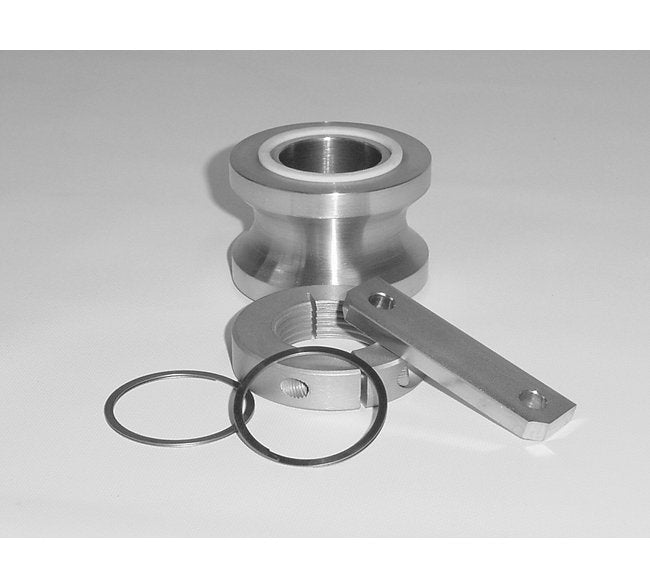

The Heavy-Duty Load Pin Bobbin is a robust accessory designed for use with clevis pins in heavy-duty applications. With a load capacity of 50000 lb, this bobbins feature precise dimensions including a D-shackle size of 1-3/4 inches, ensuring secure and reliable load measurement. Crafted with durability in mind, the bobbins are constructed with high-quality materials to withstand tough conditions. Engineered to meet strict industry standards, this accessory is ideal for institutions seeking reliable load pin accessories for their operations.
Product Specifications
Specifications A Diameter
2.000 in
Specifications B Diameter
2.250 in
Specifications C Diameter
2.625 in

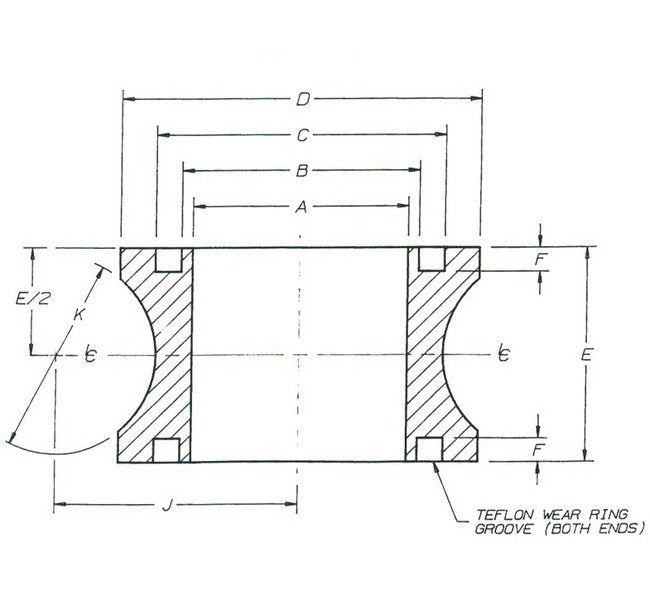

Specifications Dimensional Drawing
Clevis Pin Bobbins
Specifications D Diameter
3.750 in
Specifications D Shackle Size
1-3/4 Inch
Specifications E Height
2.875 in
Specifications F Slot Depth
0.188 in
Specifications J Length
2.313 in
Specifications K Diameter
1.625 in
Specifications Load Capacity
50000 lb
