Heavy-Duty Load Pin Bobbin Clevis Pin Accessories
Heavy-Duty Load Pin Bobbin Clevis Pin Accessories
SKU:LOA-0f1a26
Upgrade your load pin setup with our Heavy-Duty Load Pin Bobbin for reliable heavy loads. Designed for industrial precision and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy-Duty Load Pin Bobbin Clevis Pin Accessories
$49.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Load Pin Bobbin Clevis Pin Accessories
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

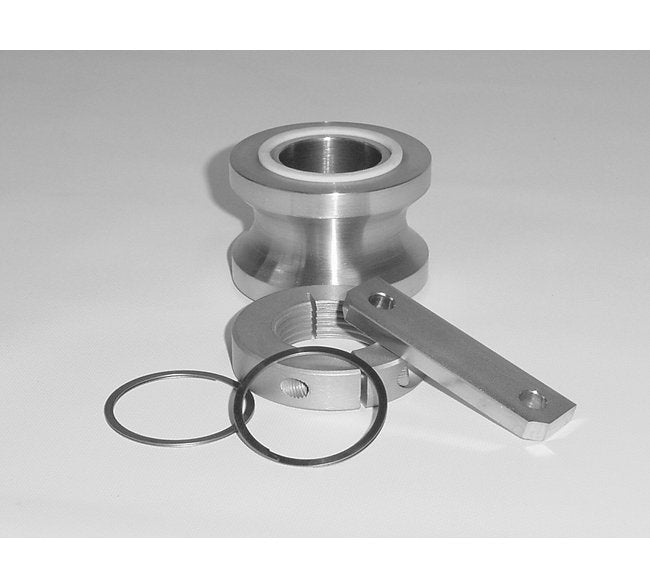

The Load Pin Bobbin is a robust accessory designed for heavy-duty applications, featuring a D-Shackle Size of 1-1/4 Inch and a Load Capacity of 25000 lb. With precise dimensions including A Diameter of 1.375 in, B Diameter of 1.625 in, and E Height of 2.031 in, this bobbin ensures secure and reliable load pin usage. Its engineering excellence meets strict industry standards for durability and performance, making it ideal for industrial and institutional procurement needs.
Product Specifications
Specifications A Diameter
1.375 in
Specifications B Diameter
1.625 in
Specifications C Diameter
1.875 in

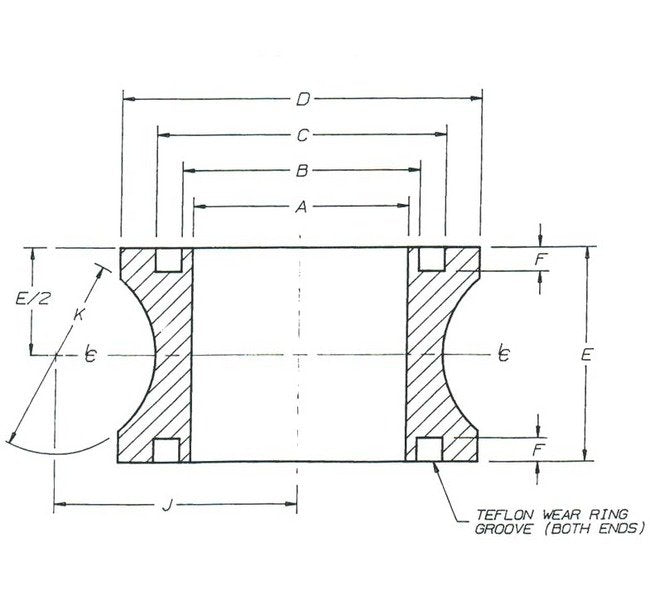

Specifications Dimensional Drawing
Clevis Pin Bobbins
Specifications D Diameter
2.625 in
Specifications D Shackle Size
1-1/4 Inch
Specifications E Height
2.031 in
Specifications F Slot Depth
0.125 in
Specifications J Length
1.625 in
Specifications K Diameter
1.125 in
Specifications Load Capacity
25000 lb
