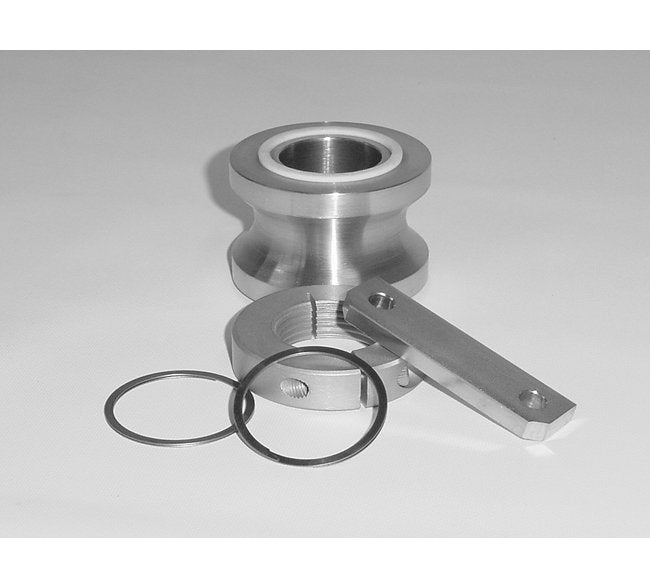

The Heavy-Duty Load Pin Bobbin is a robust accessory designed for industrial use. With a load capacity of 16000 lb, this clevis pin bobbin features precise dimensions to ensure secure fastening. The D-shackle size of 1 inch, along with dimensions A to K, provides compatibility with a wide range of equipment. Its durable construction and precise engineering make it ideal for heavy-duty applications, offering reliability and safety in challenging environments.
Product Specifications
Specifications A Diameter
1.125 in
Specifications B Diameter
1.250 in
Specifications C Diameter
1.500 in

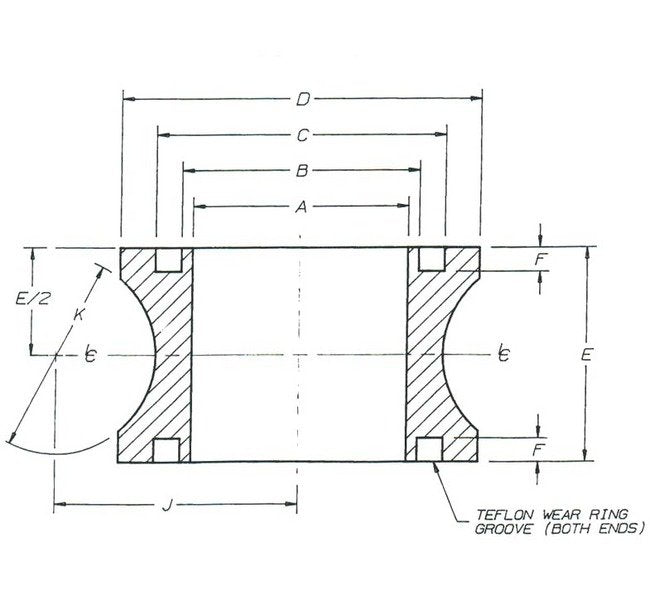

Specifications Dimensional Drawing
Clevis Pin Bobbins
Specifications D Diameter
1.987 in
Specifications D Shackle Size
1 Inch
Specifications E Height
1.687 in
Specifications F Slot Depth
0.125 in
Specifications J Length
1.141 in
Specifications K Diameter
0.750 in
Specifications Load Capacity
16000 lb
