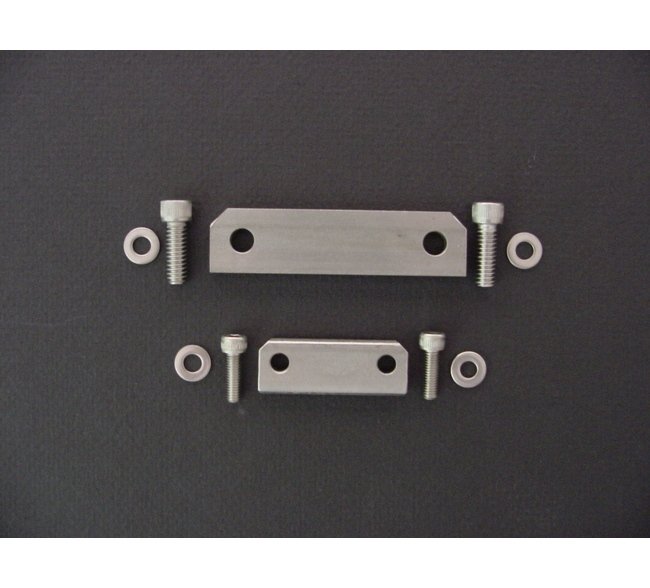

Our Heavy Duty Load Pin Keeper Plates are designed to ensure secure and precise positioning of load pins in industrial settings. With precise dimensions including 8.000" length, 2.500" height, and 0.750" thickness, these plates guarantee a perfect fit. Featuring 3/4"-10NC Keeper Bolts and washers, they provide robust support and reliability. Compliant with Federal/DoD procurement standards and FAR regulations, these plates are ideal for government and institutional procurement needs.
Product Specifications
Dimensional Drawing Dimensional Drawing
Keeper Plate
Specifications Keeper Bolts
3/4"-10NC X 2-1/4"
Specifications M Length Of Keeper Plate
8.000 in
Specifications N Height Of Keeper Plate
2.500 in
Specifications O Distance From Base Of Keeper Plate To Hole Cent
1.250 in
Specifications Q Thickness Of Keeper Plate
0.750 in
Specifications R Distance Between Retaining Holes
6.000 in
Specifications S Retaining Hole Diameter
0.781 in
Specifications Washers
3/4"
Specifications Y Distance From Edge Of Keeper Plate To The Hole
1.000 in
