Heavy-Duty Low Profile Semi-Auto Stretch Wrapper with Wrap-N-Weigh
Heavy-Duty Low Profile Semi-Auto Stretch Wrapper with Wrap-N-Weigh
SKU:SEM-3dfd32
Enhance efficiency with our Heavy-Duty Semi-Auto Stretch Wrapper designed for industrial needs.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Heavy-Duty Low Profile Semi-Auto Stretch Wrapper with Wrap-N-Weigh
$3,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Low Profile Semi-Auto Stretch Wrapper with Wrap-N-Weigh
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

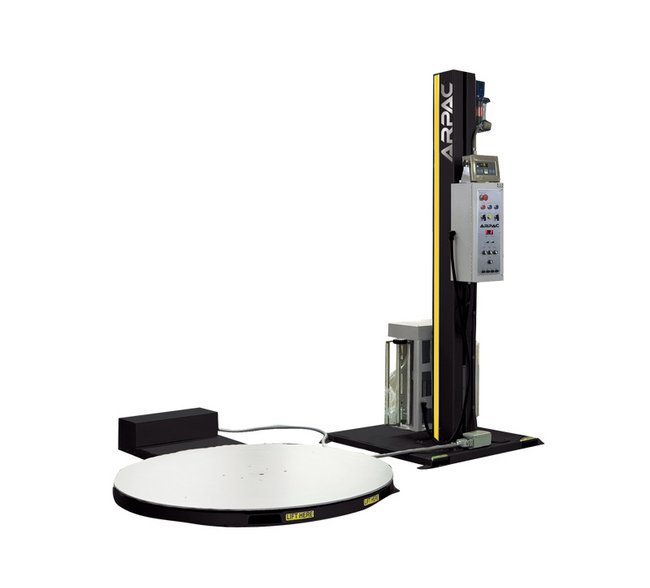

The Heavy-Duty Low Profile Semi-Auto Stretch Wrapper with Wrap-N-Weigh is a top-tier solution for efficient pallet wrapping operations. Featuring a sturdy ergonomic design, this cost-effective machine ensures safe and reliable performance. With advanced features such as adjustable LED wrap counters, top overwrap control, and anti-static film rollers, it meets the demands of industrial settings. The incorporation of EZ-LOAD Powered Pre-Stretch technology maximizes stretch film usage, offering significant cost savings. This machine, built with welded structural steel and Steel-It paint for durability, is ideal for around-the-clock operations. The optional WRAP-N-WEIGH feature enhances weighing accuracy, further optimizing the wrapping process.
Product Specifications
Additional Information Additional Information
The PRO-SERIES® is often purchased with the WRAP-N-WEIGH® feature that combines wrapping and weighing operations. A precision scale and digital controls are integrated into the machine which brings greater economy and efficiency to any wrapping operation requiring weighing. This 4,000 lb. capacity system is available with a high profile turntable for forklift loading, or low profile turntable for pallet-jack loading. The PRO-SERIES® can be customized to suit your material handling requirements with extended towers for taller loads and split frames for odd-sized larger loads. The PRO-SERIES® is part of a robust line of stretch wrapping equipment designed to maximize stretch film usage while ensuring the very best load unitization. All ARPACSTRETCH⢠equipment is constructed with heavy-duty reinforced structural steel, and finished with non-corrosive Steel-It paint, to guarantee years of reliable wrapping. The PRO-SERIES® is manufactured in the USA and sold through our nationwide distributor network.
Electrical Power Requirements Alternating Current Ac Voltage
120 V
Electrical Power Requirements Current
10 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
1
Features Features
Welded heavy-duty reinforced structural steel construction for around-the-clock operation Steel-It paint provides a durable scratch resistant surface and prevents corrosion Forklift portable 4 point caster support for HP turntable 6 pairs - Delrin caster support for LP turntable Turntable direct drive: 1/2 HP, 90 VDC motor with ANSI 50 chain Micro controller logic Top over-wrap control feature (TOC) Cycle pause control Turntable jog control Carriage pause control (banding) Adjustable dual LED wrap counters (0-7) Corner compensation Anti-static rollers UL approved components External fuses Positive home position alignment Photo electric load height sensor that detects most dark colored loads EZ-LOAD Powered Pre-Stretch 150-300%, 200% Standard Variable carriage speed (0-21 FPM) Turntable speed of 0-12 RPM adjustable Carriage drive: 1/3 HP, 90 VDC motor with ANSI chain lift drive
Note Note
A split frame design will lose up to 3" in wrap height with a standard 8' umbilical cord between the tower and the base when turntable is placed at maximum distance from the tower.
Options Options

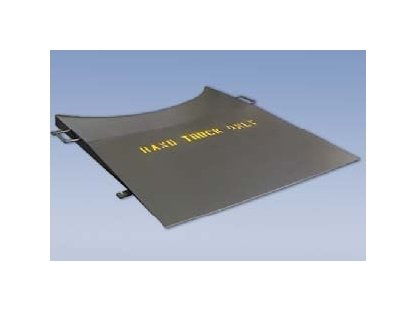

Access Ramp (Standard): Used for hand pallet jack loading to low profile machines. 48" Ramp Extension: Used for electric pallet jack loading to low profile machines. Split Frame Construction: Used for increasing load clearance to the tower (oversized pallets). Can be utilized with existing scales. (Note: Machine wrap height will decrease proportional to how far the base is placed from the tower) 12" Extended base frame used for oversized pallets (low profile split models only) Extended Film Tower: Used for wrapping taller loads exceeding standard machine capability. Standard machine wraps up to 84" high (LP). Reduce upto 3" for W-N-W models 12" Extended tower 24" Extended tower (knocked down tower, some assembly required) 36" Extended tower (knocked down tower, some assembly required) Turntable Upgrades: Used for such applications as where the full skid or slip sheet has to be totally supported or larger load diagonal is required. 72" Round turntable & 6000 lbs load capacity upgrade AFTD (Automatic Film Tear Device): This device automatically tears film at the end of the cycle eliminating sharp objects from being used by operators to cut film Top platen (Free Standing): Used for tall, light, or unstable loads. This device applies pressure to the top of the skid stabilizing the load for rotation. it comes with a 24" dia padded disc. No compressed air required. 12" Extension on top platen mast 24" Extension on top platen mast 36" Extension on top platen mast Cycle Counter: A device that counts the actual cycles of the machine (resettable) Optional Input Voltages: 200V - 480V / 60HZ200V - 480V / 50HZ Testing for additional products
Specifications Approximate Shipping Weight
1525 lb
Specifications Load Capacity
4000 lb
Specifications Load Height
0 to 81 in
Specifications Maximum Load Diagonal Clearance
0 to 85 in
Specifications Turntable System Options
Oversized Turntable: 72" diameter | Standard Turntable: 60" diameter
