Heavy Duty M2000 4-Bolt Flange Block
Heavy Duty M2000 4-Bolt Flange Block
SKU:MOU-f3922e
High-load capacity 4-Bolt Flange Block for industrial applications, with top-notch angular misalignment tolerance.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Heavy Duty M2000 4-Bolt Flange Block
$179.99
Quantity: 1
Claim Your Seller Account
Heavy Duty M2000 4-Bolt Flange Block
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty M2000 4-Bolt Flange Block is an industrial powerhouse designed for high load capacity and angular misalignment tolerance. Equipped with spherical roller bearings and available in expansion or non-expansion styles, it ensures reliable performance in demanding applications. With triple lip or labyrinth seals, this unit offers superior protection. Interchangeable with SYR and ZA units, it provides versatility and efficiency for various setups.

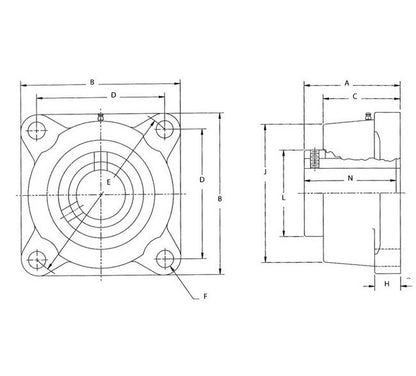

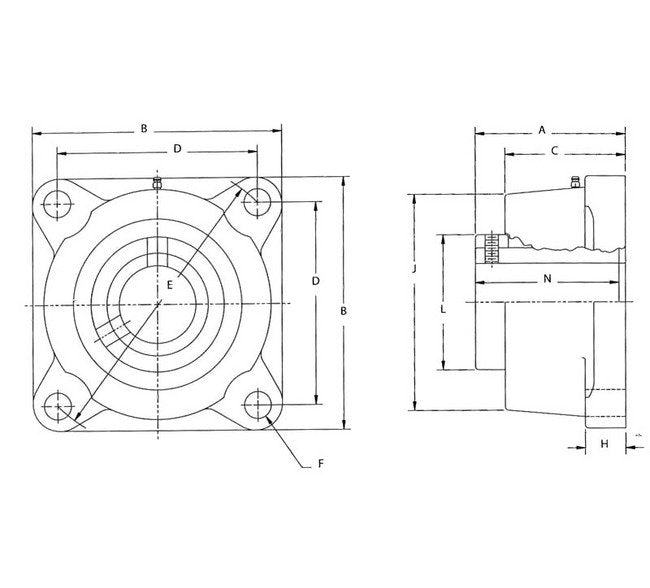

Product Specifications
Specifications A Dimension
3-1/2 in
Specifications Browning Pn
SFB1000-19111208
Specifications B Dimension
6-1/8 in
Specifications Configuration
Expansion
Specifications C Dimension
2-3/4 in
Specifications Dodge Pn
F4BS2000-19111208
Specifications D Dimension
4-25/32 in
Specifications E Dimension
6-3/4 in
Specifications F Dimension
5/8 in
Specifications H Dimension
1 in
Specifications J Dimension
5-3/4 in
Specifications Link Belt Pn
FB22400H-19111208
Specifications L Dimension
4 in
Specifications Moline Pn
19111208
Specifications N Dimension
3-3/8 in
Specifications Rex Pn
SB2000-19111208
Specifications Shaft Size
2 1/2 in
Specifications Skf Pn
FYR-19111208
Specifications Weight
16.5 lb
