The Heavy Duty M2000 4-Bolt Flange Block is engineered with spherical roller bearings to deliver exceptional load capacity while accommodating angular misalignment. This unit is available in expansion and non-expansion styles, equipped with triple lip or labyrinth seals. Interchangeable with SYR and ZA units, it offers reliability and durability in demanding industrial applications.

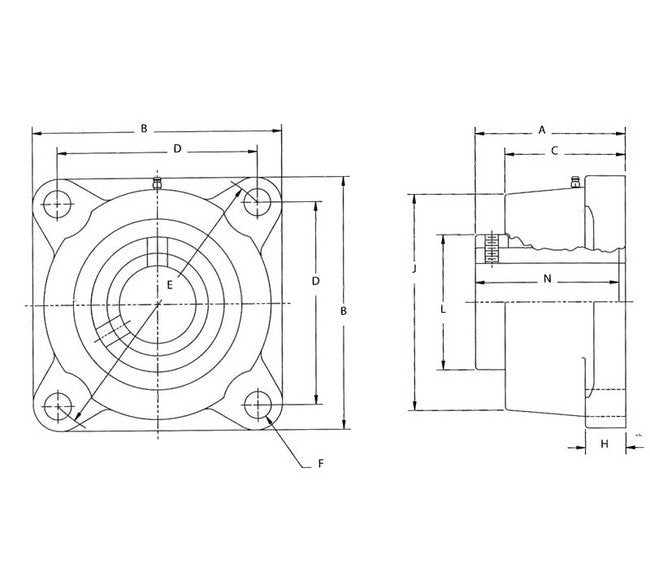

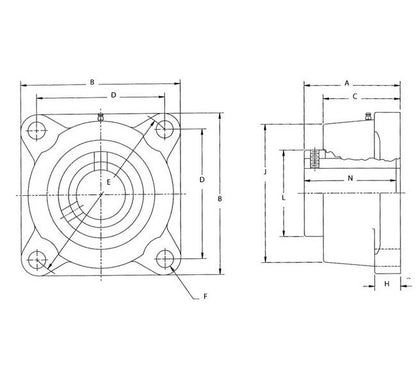

Product Specifications
Specifications A Dimension
3-15/16 in
Specifications Browning Pn
SFB1000-19111211
Specifications B Dimension
7-1/4 in
Specifications Configuration
Expansion
Specifications C Dimension
2-7/8 in
Specifications Dodge Pn
F4BS2000-19111211
Specifications D Dimension
5-9/16 in
Specifications E Dimension
7-7/8 in
Specifications F Dimension
3/4 in
Specifications H Dimension
1 in
Specifications J Dimension
6-5/8 in
Specifications Link Belt Pn
FB22400H-19111211
Specifications L Dimension
4-1/2 in
Specifications Moline Pn
19111211
Specifications N Dimension
3-5/8 in
Specifications Rex Pn
SB2000-19111211
Specifications Shaft Size
2 11/16 in
Specifications Skf Pn
FYR-19111211
Specifications Weight
25 lb
