Heavy Duty M2000 4-Bolt Flange Block Unit
Heavy Duty M2000 4-Bolt Flange Block Unit
SKU:MOU-efbc17
High load capacity 4-bolt flange block unit with spherical roller bearings for angular misalignment. Interchangeable design with premium seals for added protection.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty M2000 4-Bolt Flange Block Unit
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty M2000 4-Bolt Flange Block Unit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty M2000 4-Bolt Flange Block Unit is engineered with premium spherical roller bearings to provide exceptional load capacity and accommodate angular misalignment. This unit is available in both expansion and non-expansion styles, featuring triple lip or labyrinth seals for enhanced protection. With interchangeable compatibility with SYR and ZA units, this unit offers versatile installation options suitable for various applications. Its robust construction and precise dimensions make it a reliable choice for heavy-duty mounted units.
Product Specifications

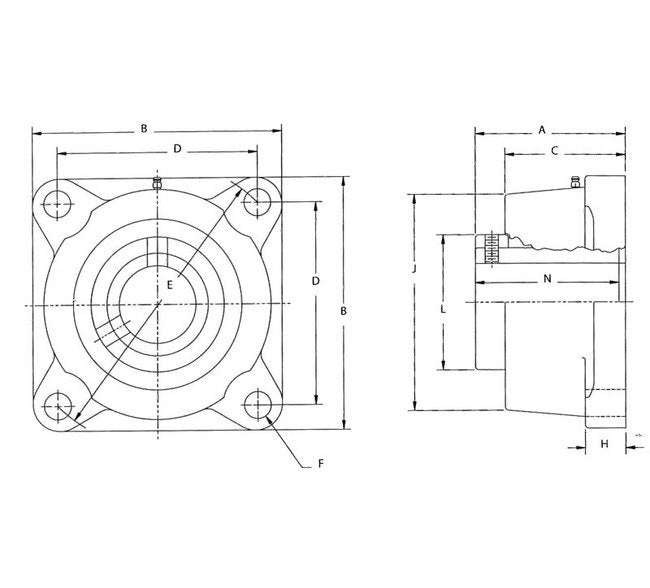

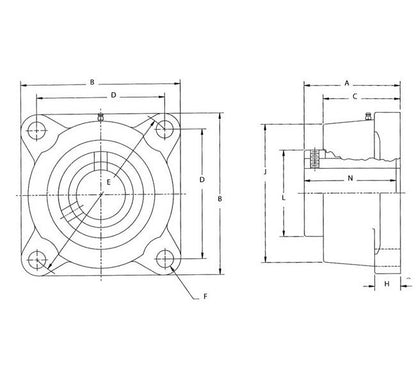

Specifications A Dimension
3-1/4 in
Specifications Browning Pn
SFB1000-19111203
Specifications B Dimension
5-7/8 in
Specifications Configuration
Expansion
Specifications C Dimension
2-7/16 in
Specifications Dodge Pn
F4BS2000-19111203
Specifications D Dimension
4-17/32 in
Specifications E Dimension
6-3/8 in
Specifications F Dimension
5/8 in
Specifications H Dimension
3/4 in
Specifications J Dimension
5 in
Specifications Link Belt Pn
FB22400H-19111203
Specifications L Dimension
3-1/4 in
Specifications Moline Pn
19111203
Specifications N Dimension
3-1/8 in
Specifications Rex Pn
SB2000-19111203
Specifications Shaft Size
2 3/16 in
Specifications Skf Pn
FYR-19111203
Specifications Weight
12.5 lb
