Heavy Duty M2000 Wide Slot Take Up Units

Heavy Duty M2000 Wide Slot Take Up Units

MOU-977744

Discover high load capacity M2000 Wide Slot Take Up Units with angular misalignment tolerance, triple lip or labyrinth seals. Interchangeable with SYR and ZA units.

$349.99
$349.99
Sale

Initiate Order

Heavy Duty M2000 Wide Slot Take Up Units

Heavy Duty M2000 Wide Slot Take Up Units

$349.99

Quantity: 1

Claim Your Seller Account

Heavy Duty M2000 Wide Slot Take Up Units

Heavy Duty M2000 Wide Slot Take Up Units

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

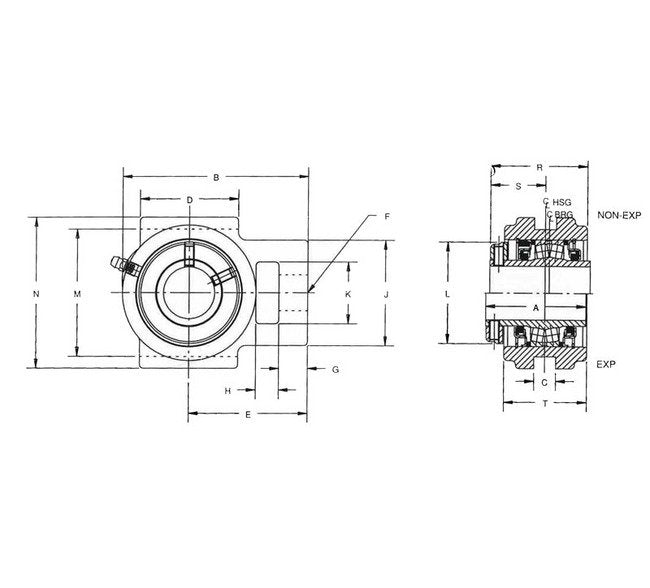

The Heavy Duty M2000 Wide Slot Take Up Units are engineered for superior performance, featuring spherical roller bearings that provide high load capacity and angular misalignment tolerance. These units are available in both expansion and non-expansion styles, equipped with triple lip or labyrinth seals for enhanced durability. Directly interchangeable with SYR and ZA units, these take up units offer precise dimensions (A to S) ensuring a seamless fit. With a weight of 30 lb and a Shaft Size of 2 15/16 in, the configuration of these units is Non-Expansion Type, meeting a range of industry standards for reliable operation.

Product Specifications

Specifications A Dimension
3-5/8 in
Specifications Browning Pn
STU1000NE-19251215
Specifications B Dimension
9-1/8 in
Specifications Configuration
Non-Expansion Type
Specifications C Dimension
1-25/32 in
Specifications Dodge Pn
WSTUS2-19251215
Specifications D Dimension
4.7500 in
Specifications E Dimension
5-7/8 in
Specifications F Dimension
1-1/2 in
Specifications G Dimension
1-3/8 in
Specifications H Dimension
1-1/4 in
Specifications J Dimension
4-7/8 in
Specifications K Dimension
2-3/4 in
Specifications Link Belt Pn
TB22400H-19251215
Specifications L Dimension
4-23/32 in
Specifications Moline Pn
19251215
Specifications M Dimension
5-15/16 in
Specifications N Dimension
6-3/4 in
Specifications Rex Pn
ZT2000-19251215
Specifications R Dimension
3-3/4 in
Specifications Shaft Size
2 15/16 in
Specifications Skf Pn
TBR-19251215
Specifications S Dimension
2-13/32 in
Specifications T Dimension
3 in
Specifications Weight
30 lb
