Heavy Duty Machined Clevis Socket Fitting
Heavy Duty Machined Clevis Socket Fitting
SKU:ARC-f0199d
Industry-standard Machined Clevis Socket Fitting for secure wire rope installations.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Machined Clevis Socket Fitting
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Machined Clevis Socket Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Machined Series: Clevis Socket Fitting is a robust and reliable solution designed for wire rope or aircraft cable installations. Crafted from self-colored steel, this clevis fitting offers exceptional strength with dimensions meeting institutional standards. With a breaking strength of 103,400#, it ensures secure linear applications. Compliant with industry-specific certifications and suitable for various procurement standards, this fitting guarantees high performance and durability.
Product Specifications
Additional Information About Breaking Strength 0
Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

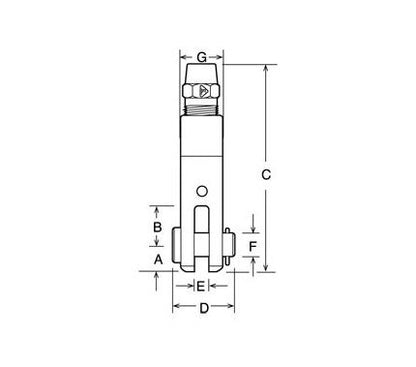

Specifications Dimensions F
1-1/2 "
Specifications Dimensions G
3-1/2 "
Specifications Dim A
1-3/4 "
Specifications Dim B
2-1/4 "
Specifications Dim C
12-3/16 "
Specifications Dim D
3-7/64 "
Specifications Dim E
15/16 "
Specifications Eips Breaking Strength
103,400#
Specifications Material Finish
Self-Colored Steel
Specifications Rope Size
1 "
Specifications Series
Machined
CAGE
0T9L4
NAICS
332510
PSC
4030
