Heavy Duty Magnetic Pole Rotary Chuck
Heavy Duty Magnetic Pole Rotary Chuck
SKU:HIG-b5680f
Enhance machining precision with the Heavy Duty Magnetic Pole Rotary Chuck's durable construction and high torque capacity for heavy lathe cuts.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Heavy Duty Magnetic Pole Rotary Chuck
$239.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Magnetic Pole Rotary Chuck
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

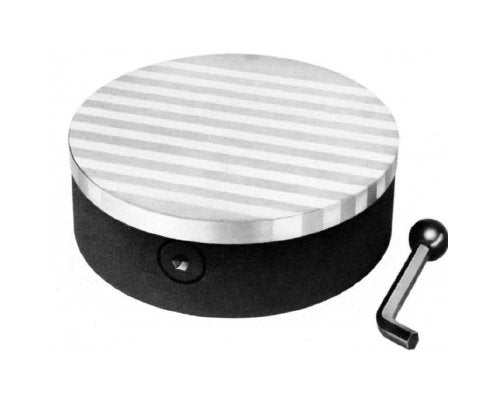

The Heavy Duty Magnetic Pole Rotary Chuck is designed for precision machining operations on lathes, grinders, and machinery with rotating spindles. With magnetic steel top plates and nonmagnetic stainless furnace brazed construction, it offers exceptional durability and reliability in industrial settings. Featuring a high torque capacity for heavy lathe cuts, this chuck can be customized for odd configurations. Dowel pins or screws can also be used in the top plate for added stability. Its 4 holes ensure secure mounting, while optional round sizes are available upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
7 to 9 in. and 14 in. Round available on request.

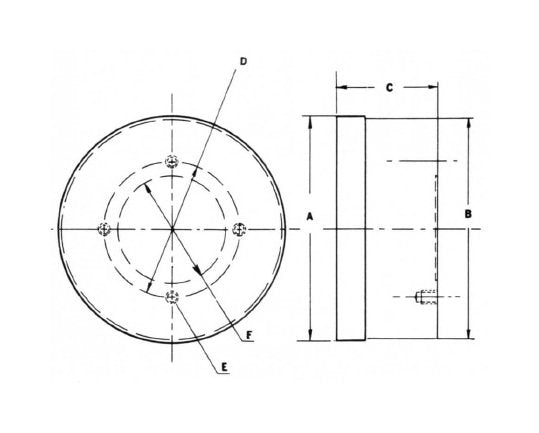

Specifications Dimension A
12 1/8 in
Specifications Dimension B
12 in
Specifications Dimension C
3 in
Specifications Dimension D
8 in
Specifications Dimension E
3/8 in -16 X 1/2 in
Specifications Dimension F
7 in
Specifications Number Of Holes
4
Specifications Pole Spacing
3/8 in
Specifications Weight
63 lb
