Heavy Duty Male Stud Coupling BSP Parallel
Heavy Duty Male Stud Coupling BSP Parallel
SKU:FIT-966701
High-pressure, heavy-duty Male Stud Coupling BSP Parallel for precise fittings in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

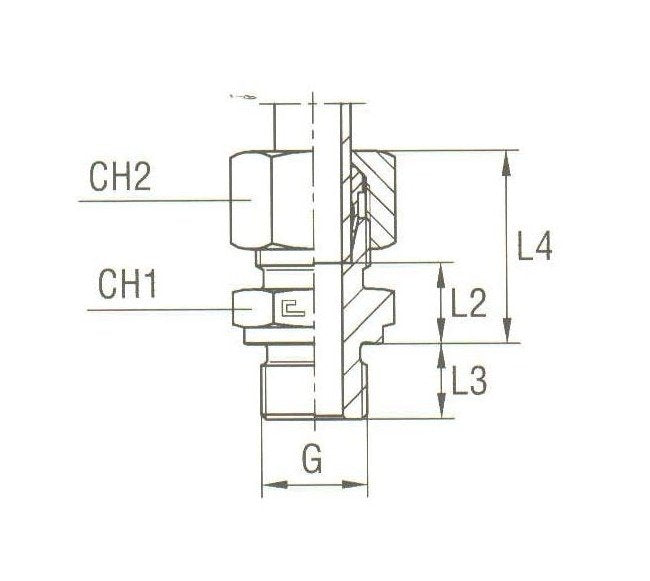

The Heavy Duty Male Stud Coupling BSP Parallel - Equipped B3 Ring is designed for high-pressure applications, with a nominal operating pressure of 400 bar. Constructed from durable carbon steel and meeting DIN 2353 standards, this coupling ensures reliable performance. Featuring a 25.0 mm tube diameter and 3/4 G-Thread Size, it offers precise fittings with dimensions that meet industry requirements. Its compact design, with measurements including L2: 23.0 mm, L3: 16.0 mm, L4: 47 mm, CH1: 41 mm, and CH2: 46 mm, enhances ease of installation and maintenance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
46 mm
Specifications G Thread Size
3/4
Specifications L2
23.0 mm
Specifications L3
16.0 mm
Specifications L4
47 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
