Heavy Duty Male Stud Coupling BSP Parallel - Equipped B4 Ring

Name: Heavy Duty Male Stud Coupling BSP Parallel - Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-607440
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-607440

Heavy Duty Male Stud Coupling for high-pressure systems. Carbon Steel construction with Viton Seal. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling BSP Parallel with Equipped B4 Ring is designed for robust performance in high-pressure environments, with a Nominal Operating Pressure of 630 bar. Constructed from Carbon Steel and featuring an Elastomeric Viton Seal, this fitting ensures reliable sealing and durability. Compliant with DIN 2353 standards, this coupling guarantees quality and precision for industrial applications.

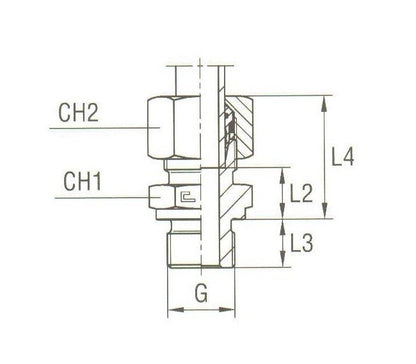

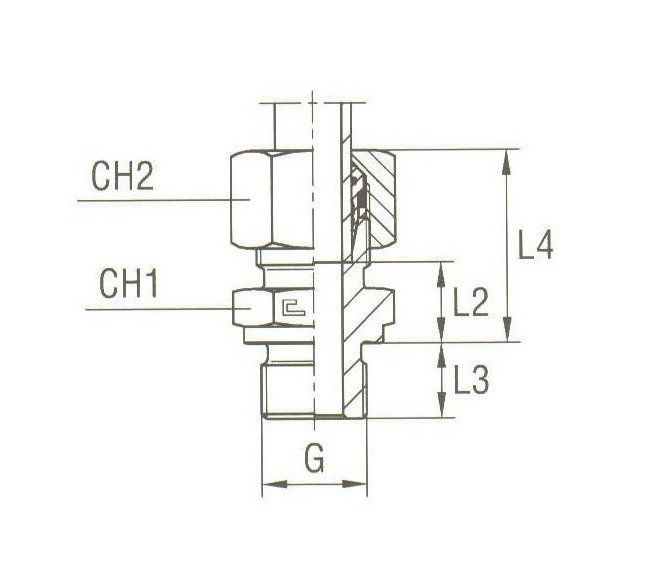

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications G Thread Size

1/4

Specifications L2

15 mm

Specifications L3

12.0 mm

Specifications L4

30 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Sealing

Elastometric Viton Seal

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling Thread BSP Parallel

Heavy Duty Male Stud Coupling BSP Parallel - Equipped B4 Ring
