Heavy Duty Male Stud Coupling BSP Parallel - Stainless Steel

Name: Heavy Duty Male Stud Coupling BSP Parallel - Stainless Steel
Brand: World Wide Metric, Inc.
SKU: FIT-83a37e
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-83a37e

Highly durable Heavy Duty Male Stud Coupling BSP Parallel crafted from Stainless Steel for secure and leak-free connections in industrial applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling Thread BSP Parallel features a Heavy Duty design with a Nominal Operating Pressure of 630 bar, making it ideal for demanding applications. Constructed with high-quality Stainless Steel, it ensures durability and reliability. With precise dimensions and meeting DIN 2353 standards, this coupling guarantees a secure and leak-free connection. Suitable for tube diameters of 6.0mm and G-Thread Size of 1/4, it offers exceptional performance in industrial setups.

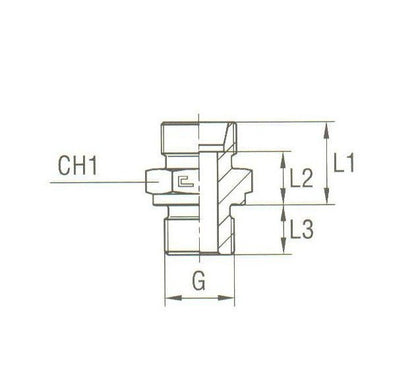

Product Specifications

Specifications Ch1

19.0 mm

Specifications G Thread Size

1/4

Specifications L1

20.0 mm

Specifications L2

13.0 mm

Specifications L3

12.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling Thread BSP Parallel

Heavy Duty Male Stud Coupling BSP Parallel - Stainless Steel
