Heavy Duty Male Stud Coupling BSP Parallel with B3 Ring
Heavy Duty Male Stud Coupling BSP Parallel with B3 Ring
SKU:FIT-aac6d2
Heavy Duty Male Stud Coupling BSP Parallel - 630 bar, Carbon Steel, DIN 2353, Easy Installation
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Male Stud Coupling BSP Parallel with B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Male Stud Coupling BSP Parallel with B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

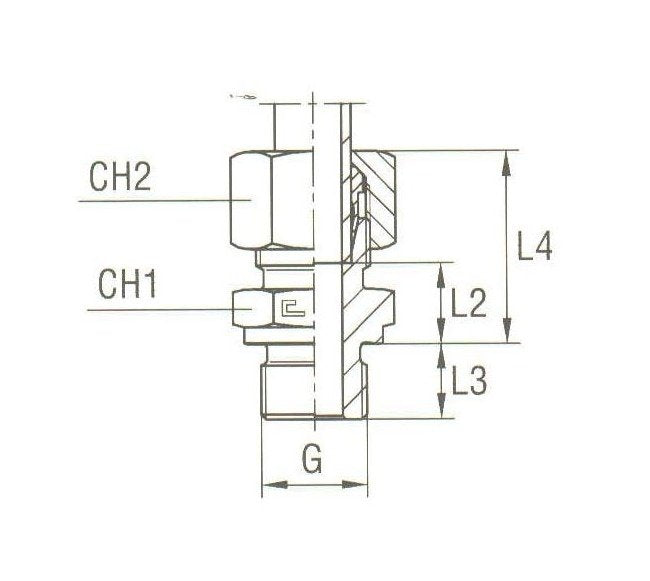

The Male Stud Coupling Thread BSP Parallel - Equipped B3 Ring is a heavy-duty fitting designed for demanding applications. With a nominal operating pressure of 630 bar, this coupling is made of high-quality carbon steel, ensuring durability and reliability. Precision-engineered to fit a 10.0 mm tube diameter with a 3/8 G thread size, it features dimensions that meet DIN 2353 standards. The Male Stud Coupling is effortless to install, with CH1 and CH2 dimensions of 22mm each, and precise L2, L3, and L4 measurements for a secure connection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
22 mm
Specifications G Thread Size
3/8
Specifications L2
15 mm
Specifications L3
12.0 mm
Specifications L4
31 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
