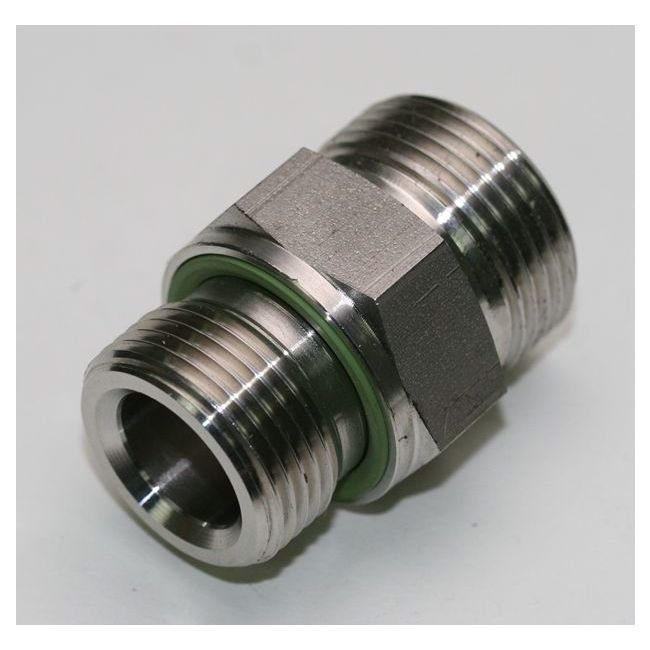

Heavy Duty Male Stud Coupling - Metric Parallel Body Only

Name: Heavy Duty Male Stud Coupling - Metric Parallel Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-13d281
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-13d281

High-quality Male Stud Coupling designed for heavy-duty applications. Carbon Steel construction, DIN 2353 compliant, ideal for high-pressure systems.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

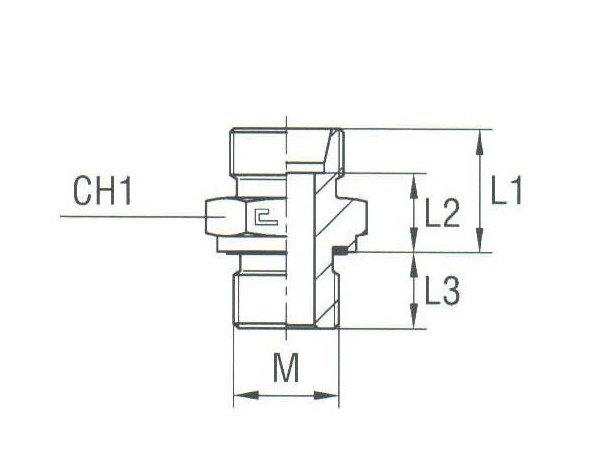

The Heavy Duty Male Stud Coupling with Elastomer Seal Thread Metric Parallel - Body Only is crafted from high-quality Carbon Steel, ensuring durability and reliability in demanding industrial environments. With a tube diameter of 12.0mm and a nominal operating pressure of 630 bar, this coupling excels in high-pressure applications. Meeting DIN 2353 standards, it offers precision engineering for secure connections. Its compact design, with dimensions L1: 25.0mm, L2: 17.5mm, L3: 14.0mm, and CH1: 27mm, makes it ideal for space-restricted installations.

Product Specifications

Specifications Ch1

27 mm

Specifications L1

25.0 mm

Specifications L2

17.5 mm

Specifications L3

14.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
