Heavy Duty Male Stud Coupling Metric Parallel - Carbon Steel Body Only

Name: Heavy Duty Male Stud Coupling Metric Parallel - Carbon Steel Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-48534f
Price: 25.99 USD
Availability: OutOfStock

SKU:FIT-48534f

Heavy Duty Male Stud Coupling for high-pressure applications, carbon steel construction, DIN 2353 compliant

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

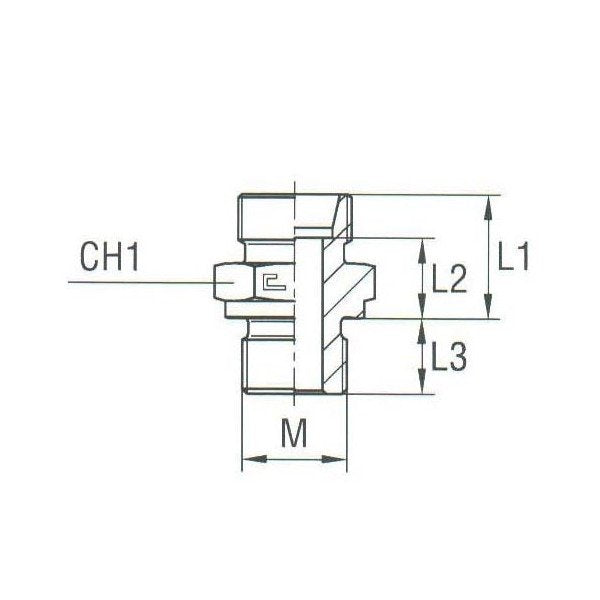

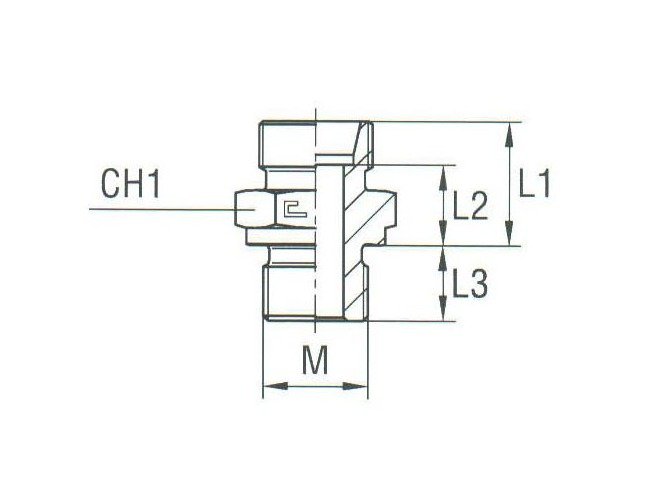

The Heavy Duty Male Stud Coupling with Metric Parallel threading is a reliable fitting designed for robust applications in industrial settings. Constructed from high-quality carbon steel, this fitting ensures durability and long-lasting performance under high pressure conditions, with a nominal operating pressure of 630 bar. Featuring precise specifications such as a tube diameter of 14.0 mm, M - Thread Size of 20x1.5, and compliance with DIN 2353 standards, this fitting is ideal for secure and leak-free connections. It is designed with dimensions L1: 27.0 mm, L2: 19.0 mm, L3: 14.0 mm, and CH1: 27 mm for seamless integration into hydraulic systems.

Product Specifications

Specifications Ch1

27 mm

Specifications L1

27.0 mm

Specifications L2

19.0 mm

Specifications L3

14.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

14.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel

Heavy Duty Male Stud Coupling Metric Parallel - Carbon Steel Body Only
