Heavy Duty Male Stud Coupling Metric Parallel - Equipped B3 Ring

Name: Heavy Duty Male Stud Coupling Metric Parallel - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-911d9f
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-911d9f

High-performance Male Stud Coupling for 315 bar applications. DIN 2353 compliant, ideal for industrial use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Male Stud Coupling with O-Ring and Washer Thread Metric Parallel - Equipped B3 Ring is designed for robust performance in demanding industrial settings. Crafted from high-grade Carbon Steel, this coupling ensures reliable sealing with a maximum nominal operating pressure of 315 bar. Compliant with DIN 2353 standards, it features precise specifications such as a 20.0 mm tube diameter and M27x2 thread size, making it ideal for secure connections in hydraulic systems. Engineered for efficiency and durability, this coupling is a reliable choice for both consumer and institutional applications.

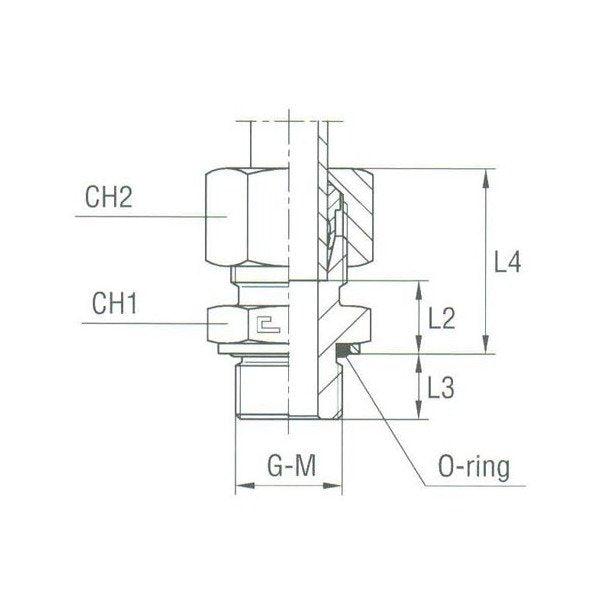

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

36 mm

Specifications L2

20.5 mm

Specifications L3

16.5 mm

Specifications L4

42 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

27x2

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

20.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel

Heavy Duty Male Stud Coupling Metric Parallel - Equipped B3 Ring
